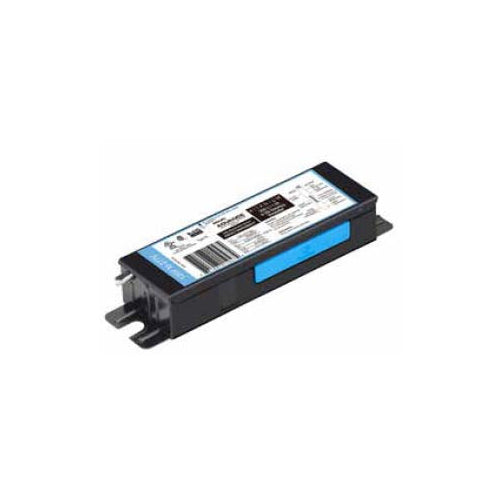

Philips XI055C180V054BSJ1, Xitanium LED Driver, Output 55W 0.1-1.8A 18-54VDC via SimpleSet, 0-10V Dimming, 120-277VAC Input
Regular price
$59.99
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | XI055C180V054BSJ1 |
| Family | Advance Xitanium LED Driver with SimpleSet |
| Part No | XI055C180V054BSJ1M |
| Dimmable | Yes |
| Length | 6.61 in / 168 mm |
| Width | 1.79 in / 45.5 mm |
| Height | 1.12 in / 28.5 mm |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |
| Output Voltage | 18-54V |
| Output Current | 0.1 - 1.8A |
| Output Power | 55W |
| Power Factor | >0.9 |
| Start Temp. | -40°C~55ºC |
| Weight | 0.795 Lbs / 0.361 Kgs |
| UL Listed | CSA, cULus, For Dry and Damp Location |
| Notes | AOC (Adjustable Output Current) 0.1A-1.8A via SimpleSet (Factory Default at 1.05A) |
| Cross Refefence | Advance CertaDrive X CI055C115V048CDX1, 100 - 277Vac, 55W, 1035; 1150mA, 28-48V, [0-10V], IP20 LED Driver |
