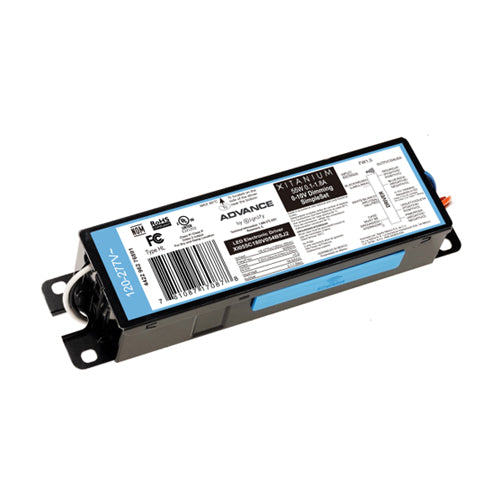

Philips XI055C180V054BSJ2, Xitanium LED Driver, 55W 0.1-1.8A 18-54Vdc via SimpleSet, 0-10V Dimming, 120-277Vac Input
Regular price
$60.95
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | XI055C180V054BSJ2 |
| Family | Advance Xitanium LED Driver with SimpleSet |
| Part No | XI055C180V054BSJ2M |
| Dimmable | Yes |
| Length | 6.61 in / 168 mm |
| Width | 1.79 in / 45.5 mm |
| Height | 1.12 in / 28.5 mm |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |
| Output Voltage | 10-54VDC |
| Output Current | 0.1-1.8A |
| Output Power | 55W |
| Power Factor | >0.9 |
| Start Temp. | -40°C~55°C |
| Weight | 0.893 Lbs / 0.404 Kgs |
| Plug Type | SR Power Supply Current Source: 52mA to 60mA, Voltage Range: 12V to 20V |
| UL Listed | CSA, cULus, For Dry and Damp Location |
| Notes | AOC (Adjustable Output Current) 0.1A-1.8A via SimpleSet (Factory Default at 1.05A) |
| Cross Reference | Advance CertaDrive X CI055C115V048CDX1, 100 - 277Vac, 55W, 1035; 1150mA, 28-48V, [0-10V], IP20 LED Driver |
| Notes | We provide free programming services for all programmable LED Drivers we sold as per your requested output Current and Voltage. Please leave a detailing memo if you need this service when you check out. |
