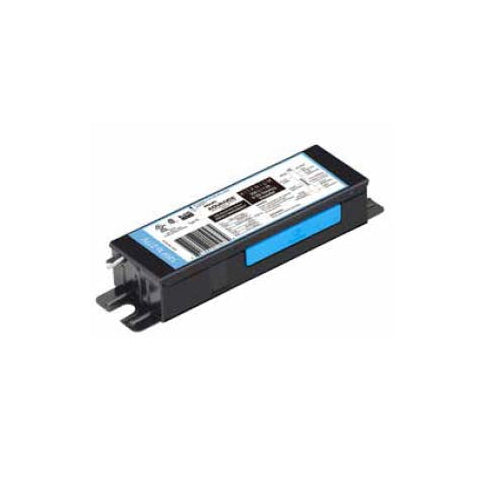

Philips XI075C070V118VSY3, Xitanium SR LED Driver, 75W 43-118VDC 0.07-0.70A via SimpleSet, DALI Dimming , 120-277VAC Input
Regular price
$136.55
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Advance Xitanium Sensor Ready (SR) LED driver can help reduce complexity and cost of light fixtures used in connected lighting systems in outdoor lighting applications. It's D4i certified and features a standard compliant digital interface to enable direct connection to compatible networked lighting control (NLC) solutions. Functionality that ordinarily would require additional auxiliary components is integrated into the driver. The result is a simple, cost-effective light fixture that can enable every fixture to become a wireless node
| Stock Code | XI075C070V118VSY3 |
| Family | Advance Xitanium Sensor Ready (SR) LED driver |
| Part No | XI075C070V118VSY3M |
| Dimmable | Yes |
| Length | 6.59'' |
| Width | 2.31'' |
| Height | 1.48'' |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |
| Output Voltage | 43-118VDC |
| Output Current | 0.07-0.70A |
| Output Power | 95W |
| Power Factor | >0.95 |
| Start Temp. | -40°C~55°C |
| Weight | 1.58Lbs/ 0.68Kgs |
| Operates | Communication Protocol DALI-2, D4i, ANSI C137.4 |
| UL Listed | UL 8750, NOM, cUL, Class P (UL, cUL), For Dry and Damp Location |
| Notes | AOC (adjustable output current): 0.07A to 0.7A via SimpleSet programming (refer to graphs and notes) |
| Cross Refefence |
Advance Xitanium SR XI075C070V118VSY2M Advance Xitanium SR XI075C070V118VSY2 75W 120-277V 0.7A SR |
