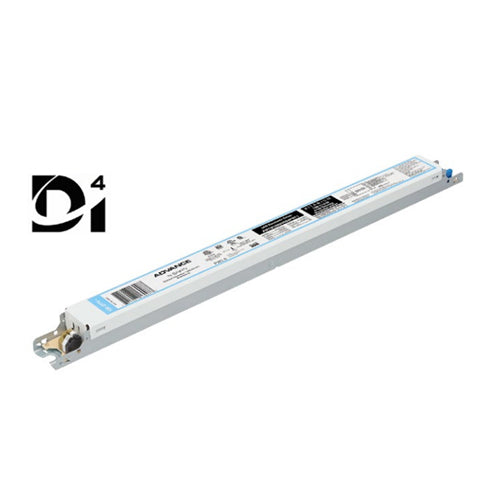

Philips XI075C200V054VPT3, Xitanium SR LED Driver, 75W 0.1-2.0A 10-54VDC Class 2 Output via SimpleSet, Sensor Ready Dimming, 120-277VAC Input
Regular price
$89.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Advance Xitanium Sensor Ready (SR) LED driver can help reduce complexity and cost of light fixtures used in connected lighting systems for indoor lighting applications. It's D4i certified and features a standard-compliant digital interface to enable direct connection to compatible networked lighting control (NLC) solutions. The minimum dimming level has been improved to be as low as 1%. Advanced lighting control functionalities that ordinarily would require additional auxiliary component are integrated into this driver. The result is a simple, cost-effective light fixture that supports the most advanced smart lighting use cases.
| Stock Code | XI075C200V054VPT3 |
| Family | Advance Xitanium Sensor Ready (SR) LED driver |
| Part No | XI075C200V054VPT3M |
| Dimmable | Yes |
| Length | 16.69 in / 424 mm |
| Width | 1.20 in / 30.5 mm |
| Height | 1.02 in / 25.8 mm |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |
| Output Voltage | 10-54VDC |
| Output Current | 0.1-2.0A |
| Output Power | 75W |
| Power Factor | >0.95 |
| Start Temp. | -40°C~50°C |
| Weight | 0.79Lbs / 0.36 kgs |
| Plug Type | SR Power Supply Current Source: 52mA to 60mA, Voltage Range: 12V to 20V |
| UL Listed | UL8750, CSA C22.2 No.250.13, NOM, Class P (UL, ETL), cUL, For Dry and Damp Location |
| Notes | 0.1A-2.0A via SimpleSet (Factory Default at 2.0A), Communication Protocol DALI-2, D4i, ANSI C137.4 |
| Cross Refefence |
Advance Xitanium XI075C200V054PST1, XI075C200V054PST1M (This model has auxiliary power supply, if you do not need auxiliary power supply function, you can use above item to replace it) Advance Xitanium XI075C200V054BST1, XI075C200V054BST1M |
