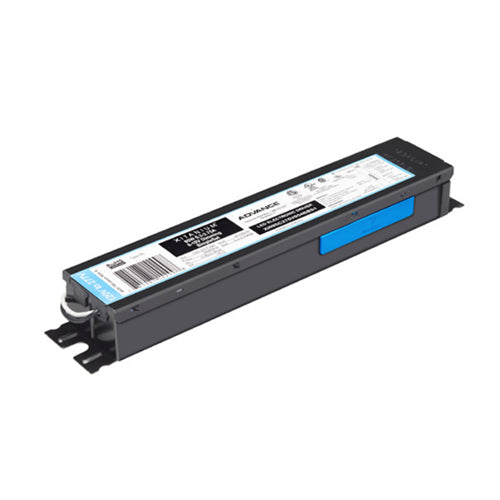

Philips XI095C275V054BSS2, Xitanium LED Electronic Driver, 95W 0.1-2.75A 20-54Vdc via SimpleSet, 0-10V Dimming, 120-277Vac Input
Regular price
$74.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Long-lasting and low maintenance, LED-based light sources are an excellent solution for all lighting applications. For optimal performance, these solutions require reliable drivers matching the long lifetime of the LEDs. The Advance Xitanium LED Outdoor Driver portfolio offers a range of products specially designed to operate LED solutions in outdoor applications. These drivers are designed for hard-wired integration into outdoor luminaires for the most rugged applications. They operate to specification under wide temperature and electrical ranges to ensure reliability
| Stock Code | XI095C275V054BSS2 |
| Family | Advance Xitanium LED Driver with SimpleSet |
| Part No | XI095C275V054BSS2M |
| Dimmable | Yes |
| Length | 9.45'' |
| Width | 1.69'' |
| Height | 1.13'' |
| Input Voltage | 120-277Vac |
| Bulb Type | LED |
| Output Voltage | 20-54Vdc |
| Output Current | 0.1-2.75A |
| Output Power | 95W |
| Power Factor | >0.95 |
| Start Temp. | -40°C~55°C |
| Weight | 1.50 Lbs / 0.68 kgs |
| UL Listed | CSA, cULus, For Dry and Damp Location |
| Notes | AOC (Adjustable Output Current) 0.1A-2.75A via SimpleSet (Factory Default at 2.3A) |
| Cross Refefence | Signify North America Advance LED Driver XI095C210V050CNS2, XI095C210V050CNS2M 100 - 277Vac, 95W, 2100mA, 30-50V, [0-10V], IP65 LED Driver Philips Advance Xitanium XI100C230V042CNS1, XI100C230V042CNS1M |
