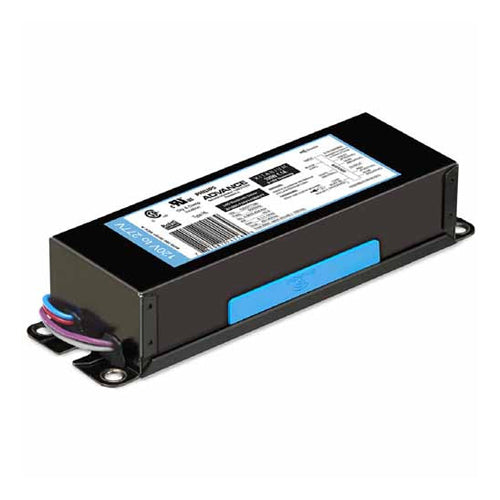

Philips XI100C110V143BSY1, Advance Led Driver with SimpleSet, 100W Max. Output Power, 100-1100mA 48-143VDC Output, 0-10V Dimming, 120-277VAC Input
Regular price
$67.99
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | XI100C110V143BSY1 |
| Family | Philips Advance Xitanium |
| Part No | XI100C110V143BSY1M |
| Dimmable | Yes |
| Length | 6.61 in (168 mm) |
| Width | 2.32 in (59 mm) |
| Height | 1.50 in (38 mm) |
| Input Voltage | 120-277VAC |
| Input Current | 0.94A@120VAC, 0.42A@277VAC |
| Output |
Voltage: 48-143V
Current: 0.1 - 1.1A
Power: 100W
|
| Bulb Type | LED |
| Power Factor | >0.95 |
| Start Temperature | ‐40°C (-40°F)~55°C (131°F) |
| THD | <15% |
| Mounting Length | 5.98 in (152 mm) |
| UL Listed | UL 8750, CSA 250.13 |
| Warranty | 5 Years |
| Weight | 1.44 lb. |
