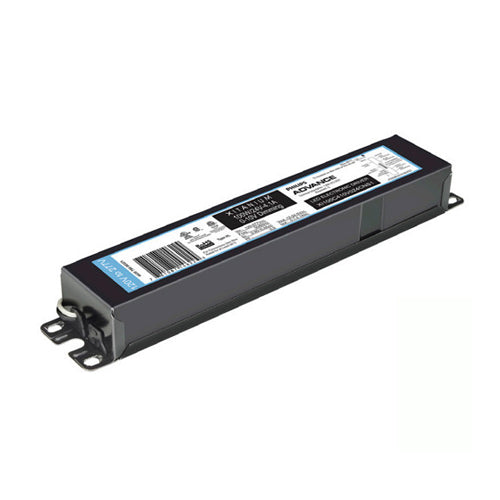

Philips XI100C410V024FNS1, Advance Xitanium LED Driver, 100W Output Voltage 12-24Vdc with Constant Current Mode 4.1A, 120-277Vac Input
Regular price
$59.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Philips Advance Xitanium portfolio provides high-performance and reliable driver solutions for lighting applications. The Xitanium LED drivers with both constant voltage (CV) and constant current (CC) mode are compatible with respective loads and allow the user to utilize the same driver for CV and CC applications. The drivers provide general illumination for outdoor applications, including LED signs and canopy lights. They can also be used in indoor CV applications such as strip and bar lights or under-cabinet lighting, ambient lighting and low-bay and high-bay industrial lighting.
| Stock Code | XI100C410V024FNS1 |
| Family | Advance by Signify Xitanium LED Driver with both Constant Voltage (CV) and Constant Current (CC) mode |
| Length | 8.34 in / 211.7 mm |
| Width | 1.70 inch / 43.1 mm |
| Height | 1.12 inch / 28.5 mm |
| Voltage | 120-277Vac Input |
| Bulb Type | LED |
| Output Voltage | 12-24Vdc |
| Output Current | 0.1 -4.16A |
| Output Power | 100W Max |
| Power Factor | >0.9 |
| UL Listed | cULus, For Dry and Damp Location |
| Weight | 1.4 Lbs / 0.63 kgs |
| Warranty | 3 Years |
| Notes | CV and CC Mode: Driver can operate in both CC and CV mode, based on the type of load connected to the driver. |
| Cross Refefence | Advance Xitanium LED Driver XI072C300V024CNS1M 929001708013, XI072C300V024CNS1 Advance Xitanium LED Driver XI077C320V024FNS1M, 929001708113, XI077C320V024FNS1 |
