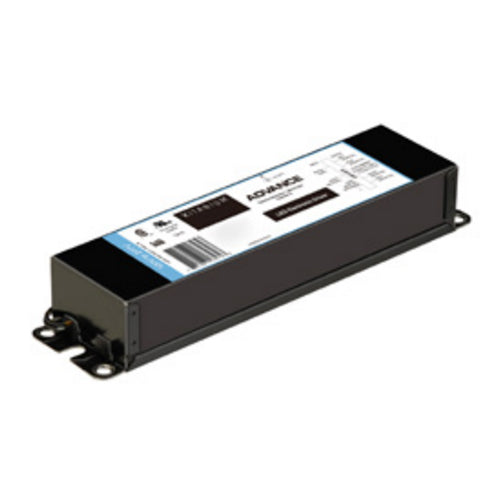

Philips XI150C150V100CNF1, Advance Xitanium LED Driver, 150W Max. Output Power, 1.5A 30-100VDC 0-10V Dimming Output, 120-277VAC Input
Regular price
$69.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | XI150C150V100CNF1 |
| Family | Advance Xitanium LED Outdoor Driver |
| Part No | XI150C150V100CNF1M |
| Dimmable | Yes |
| Length | 8.31 in (211.1 mm) |
| Width | 2.31 in (58.6 mm) |
| Height | 1.48 in (37.6 mm) |
| Input Voltage | 120-277 Vac |
| Input Current | 1.4A@120VAC, 0.6A@277VAC |
|---|---|
| Output |
Voltage: 30-100VDC
Current: 1.50A
Power: 150W
|
| Bulb Type | LED |
| Power Factor | >0.95 |
| Start Temperature | ‐40°C (-40°F)~55°C (131°F) |
| THD | <10% |
| Mounting Length | 8.91 in (226.3 mm) |
| UL Listed | UL 8750, CSA 250.13 |
| Weight | 2.1 Lbs / 0.95 kgs |
