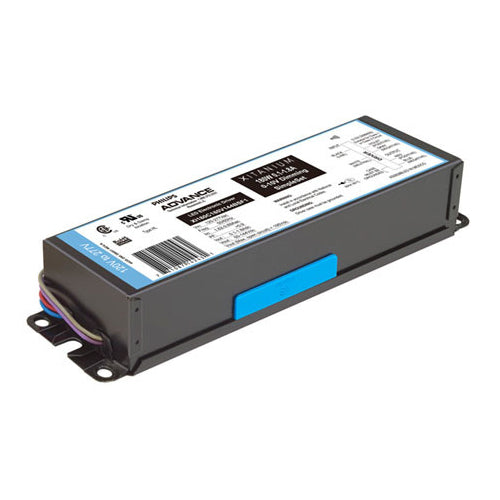

Philips XI180C125V200BSF1M, Advance Dimming Led Driver, 180W Max. Output Power, 100-1250mA Output Current, 70-210VDC Output Voltage, 120-277VAC Input
Regular price
$78.99
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | XI180C125V200BSF1M |
| Family | Philips Advance Xitanium Constant Current Led Driver |
| Part No | 514786 |
| Dimmable | Yes |
| Length | 9.47 in |
| Width | 2.31 inch |
| Height | 1.48 inch |
| Input Voltage | 120-277V, 50/60Hz |
| Input Current | 1.5A@120V, 0.65A@277V |
| Output |
Voltage: 70-210V
Current: 0.1 - 1.25A
Power: 180W
|
| Bulb Type | LED |
| Power Factor | >0.94 |
| Start Temperature | ‐40°C ~55°C |
| Mounting Length | 8.91'' |
| UL Listed | UL, CSA |
| Weight | 2.1 Lbs |
| Cross Refefence | Advance Xitanium XI180C125V200BSF2, XI180C125V200BSF2M |
