Home » Philips XI180C125V200BSF2, Xitanium LED Driver, 180W Max. Output Power, 100-1250mA Output Current, 70-210VDC Output Voltage, 0-10V Dimming, 120-277VAC Input
Philips

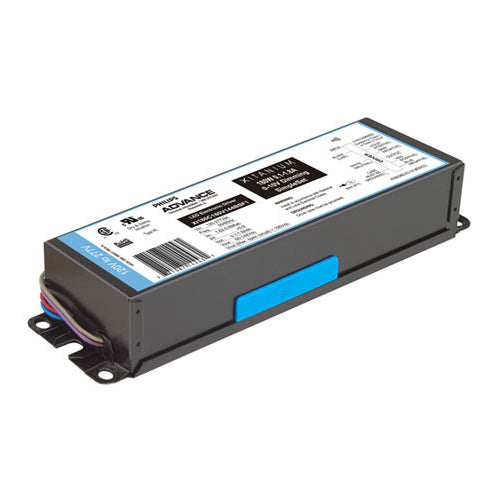

Philips XI180C125V200BSF2, Xitanium LED Driver, 180W Max. Output Power, 100-1250mA Output Current, 70-210VDC Output Voltage, 0-10V Dimming, 120-277VAC Input

In stock
SKU: XI180C125V200BSF2
$78.99
Rated voltage
Power

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Stock Code XI180C125V200BSF2
Family Philips Advance Xitanium Constant Current Led Driver
Part No XI180C125V200BSF2M
Dimmable Yes
Length 8.31 in
Width 2.31 in
Height 1.48 in
Input Voltage 120-277V, 50/60Hz
Input Current 1.5A@120V, 0.65A@277V
Output
Voltage:  70-210V
Current:  0.1A-1.25A via SimpleSet (Factory Default at 1.05A)
Power:    180W
Bulb Type LED
Power Factor >0.94
Start Temperature ‐40°C ~55°C
Mounting Length 8.91 in
UL Listed UL, CSA
Weight 2.1 Lbs
