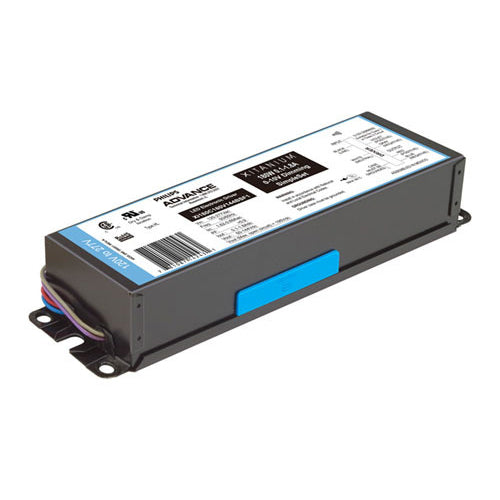

Philips XI180C125V210VSF2, Xitanium SR LED Driver, Output 180W 0.1-1.25A 70-210VDC, DALI Dimming with Auxiliary Power Supply, 120-277VAC Input
Regular price
$119.99
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The Advance Xitanium Sensor Ready (SR) LED driver can help reduce complexity and cost of light fixtures used in connected lighting systems in outdoor lighting applications. It's D4i certified and features a standard-compliant digital interface to enable direct connection to compatible networked lighting control (NLC) solutions. Functionality that ordinarily would require additional auxiliary components is integrated into the driver. The result is a simple, cost-effective light fixture that can enable every fixture to become a wireless node.
| Stock Code | XI180C125V210VSF2 |
| Family | Advance Xitanium Sensor Ready (SR) LED driver |
| Part No | XI180C125V210VSF2M |
| Dimmable | Yes |
| Length | 8.31 inch / 211.1 mm |
| Width | 2.31 inch / 58 mm |
| Height | 1.48 inch / 37.6 mm |
| Input Voltage | 120-277V, 50/60Hz |
| Input Current | 1.76A@120V, 0.76A@277V |
| Output |
Voltage: 70-210VDC
Current: 0.1 - 1.25A
Power: 180W
|
| Bulb Type | LED |
| Power Factor | >0.95 |
| Start Temperature | ‐40°C ~55°C |
| Mounting Length | 8.91inch |
| Weight | 2.1 Lbs |
| UL Listed | UL 8750, CSA 250.13, Class P (UL, CSA, ETL), For Dry and Damp Location |
| Notes | AOC (Adjustable Output Current) 0.1A-1.25A via SimpleSet (Factory Default at 1.05A) |
