Philips

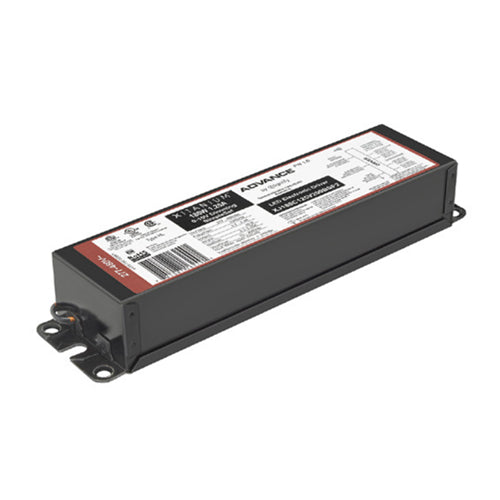

Philips XJ180C090V285VSF2, Advance Xitanium SR LED Driver, 180W 0.10-0.9A 100-285VDC Output, DALI Dimming, 277-480VAC Input

In stock
SKU: XJ180C090V285VSF2
$155.04
Rated voltage
Power

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Stock Code XJ180C090V285VSF2
Family Advance Xitanium SR LED Driver
Part No XJ180C090V285VSF2M
Dimmable Yes
Length 8.31 inch / 211.1 mm
Width 2.31 inch / 58 mm
Height 1.48 inch / 37.6 mm
Input Voltage 277 - 480 Vac
Output
Voltage: 100-285VDC
Current: 0.1A-0.9A via SimpleSet (Factory Default at 0.7A)
Power:   180W
Bulb Type LED
Power Factor >0.95
Start Temperature ‐40°C~55°C
UL Listed UL 8750, CSA 250.13, Class P (UL, CSA, ETL), For Dry and Damp Location
Weight 2.1 Lbs / 0.95 kgs
