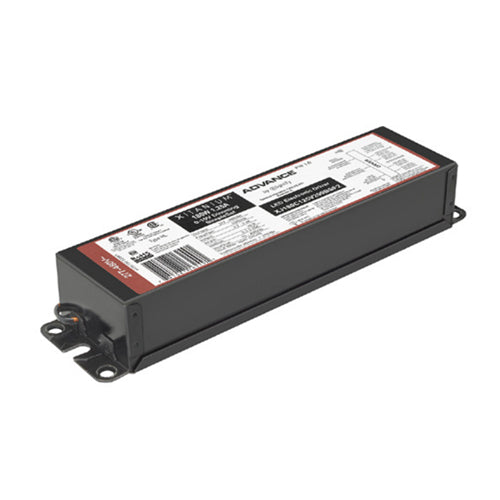

Philips XJ180C180V144PSF2M, Xitanium LED Driver, 180W 0.1-1.8A 50-144VDC Output, 0-10V Dimming, wth Additional Auxiliary Output Power, 277-480VAC Input

In stock
SKU: XJ180C180V144PSF2M
$137.60
Rated voltage
Power

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Xitanium LED Driver, DuraVolt XJ180C180V144PSF2M, Additional auxiliary output for powering simple sensors (occupancy/photocell), and the driver has a built-in standby mode through the 0-10V leads. The additional auxiliary power output eliminates the need for a mains relay or power pack for the sensor and allows the sensor to turn the driver on/off and also operate the dimming function.

Stock Code XJ180C180V144PSF2M
Family Advance Xitanium SR LED Driver
Part No XJ180C180V144PSF2
Dimmable Yes
Length 8.31 inch / 211.1 mm
Width 2.31 inch / 58 mm
Height 1.48 inch / 37.6 mm
Input Voltage 277 - 480 Vac
Output
Voltage:  50-144VDC
Current:  0.1 - 1.8A
Power:    180W
Bulb Type LED
Operates AOC (Adjustable Output Current): 0.1A-1.8A via SimpleSet (Factory Default at 1.5A)
Power Factor >0.95
Start Temperature ‐40°C ~55°C
UL Listed UL 8750, CSA 250.13, Class P (UL, CSA, ETL), For Dry and Damp Location
Weight 2.1 Lbs / 0.95 kgs
