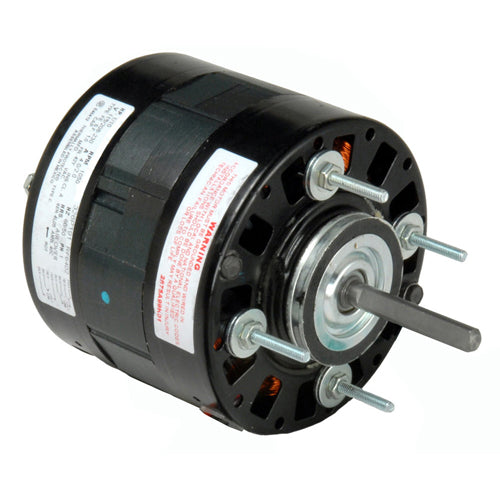

Rotom M4-R2940, 5.0'' Diameter 21/29 Frame Replacement Motor, Shaded Pole, Sleeve Bearing, 1/10 HP, 115/208/230 Volts, 4 Amps, 1/1050 Spd/RPM, CW Rotation, 2.3''×3/8'' Shaft

In stock
SKU: M4-R2940
Regular price $331.49
Ampere rating
Horsepower
Rated voltage

Use this text to encourage communication or promote sharing on social networks.

You can also add links

These specially designed Rotom motors will replace hundreds of Universal, Fasco & G.E. 21/29 frame motors. This means reduced inventory, better turnover, competitive prices and increased profits.

  • 3/8'' shaft with 1/2¨ adapter included
  • Complete with resilient base
  • Longer shafts
  • Automatic reset thermal overload protector
  • 30¨ colour coded leads with grommet exit
  • Mechanically reversible
  • 1/10 HP rating replaces G.E. 1/20, 1/15, & 1/10 motors
  • 2-1/4'', 2-1/2 Resilient rings
  • 2-5/8'' Shaft height
Type
Shaded Pole (SP)
Horsepower
1/10
Revolutions Per Minute 1050
Voltage 115/208/230
Amps 4.0
Speed One
Rotation CW (ClockWise)
Enclosure Open
Diameter 5.0''
Body Length 4.80''
Frame Size 42
Shaft Size 2.3'' × 3/8''
Bearing Sleeve
Mounting Strap, Stud or Base
