Home » Rotom M5-S1454, 6.5" Condenser Fan Motor, Ball Bearing, Single Phase, 1 HP, 460/200-230 Volts, 2.4/4.8 Amps, 25MFD Capacitor, 1/1075 Spd/RPM, Reversible Rotation, 6''×5/8'' (Keyed & Flat) Shaft
Rotom

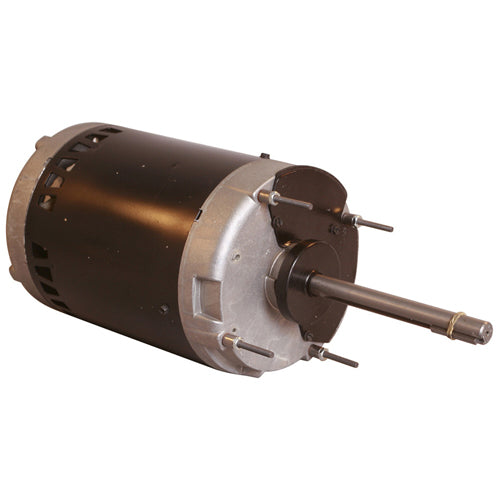

Rotom M5-S1454, 6.5" Condenser Fan Motor, Ball Bearing, Single Phase, 1 HP, 460/200-230 Volts, 2.4/4.8 Amps, 25MFD Capacitor, 1/1075 Spd/RPM, Reversible Rotation, 6''×5/8'' (Keyed & Flat) Shaft

In stock
SKU: M5-S1454
$807.70
Ampere rating
Horsepower
Rated voltage
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Horsepower
1
Revolutions Per Minute 1075
Voltage 460/200-230
Amps 2.4/4.8
Speed One
Rotation Reversible
Enclosure Open
Capacitor
 25MFD / 370V
Diameter
 6.5''
Frame Size
56Y
Body Length 10.75''
Shaft Size 6.0'' × 5/8''
Bearing Ball
Ambient Temperature
 60°C
Insulation
 Class B Moisture-Resistant
Base
 92-A8279
Mounting
 1" (Min.) Extended Thru Bolts
