Home » Rotom O4-R6365, Unit Bearing ECM Motor, 1/15 HP, 0.77 Amps, 230 Volts, CW Rotation, 1/1550 Spd/RPM, 1.95''×5/16'' Shaft
Rotom

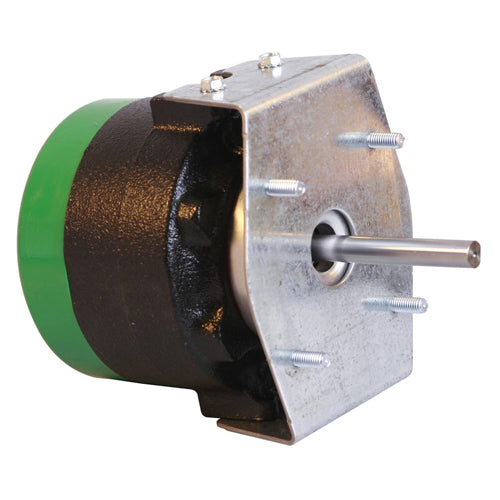

Rotom O4-R6365, Unit Bearing ECM Motor, 1/15 HP, 0.77 Amps, 230 Volts, CW Rotation, 1/1550 Spd/RPM, 1.95''×5/16'' Shaft

In stock
SKU: O4-R6365
$548.54
Ampere rating
Horsepower
Rated voltage

Use this text to encourage communication or promote sharing on social networks.

You can also add links

ECM Unit Bearing Replacement For 3.3¨ Diameter Motors, Heatcraft Replacement Motors - Bohn, Chandler, Climate Control and Larkin

  • Walk-In cooler applications
  • Low Temperature oil
  • Bracket may be reversed for rear bolt (shaft down) applications
  • 16¨ Leads with Lyall plug
  • Cast iron
  • Shaft down & horizontal mounting
  • Suitable for use in evaporator or condenser applications
Horsepower
1/15
Revolutions Per Minute 1550
Voltage 230
Amps 0.77
Speed One
Rotation CW (ClockWise)
Enclosure Open Enclosed
Body Length 3.2''
Shaft Size 1.95'' × 5/16''
Bearing Unit
Operating Temperature -20°F(-29°C) to 104°F(40°C)
