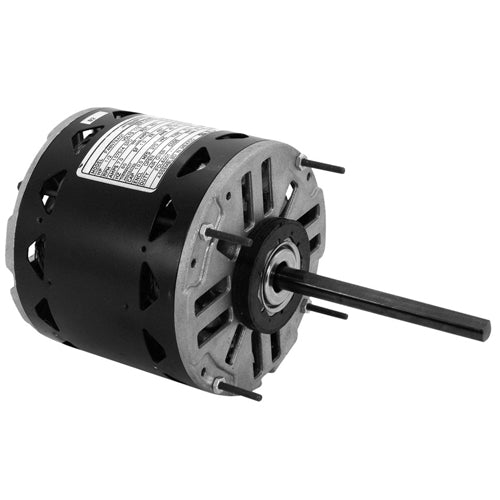

Rotom R6-R43600, TruckStock™ 5.5'' Direct Drive Replacement Motor, Sleeve Bearing, 1/2,1/3,1/4,1/5,1/6 HP, 4/1075 Spd/RPM, 115 Volts, 7/6.7/4.4/3.2/2.4 Amps, 26'' Leads, 1/2''×5'' Shaft
Regular price
$276.64
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
* Motor is approximately 10% stronger and has higher starting torque for 1/6, 1/5, 1/4 and 1/3 HP rating with the 7.5 mfd 370VAC capacitor.
- Multi-Rating Capacitor Supplied
- Different Capacitor/Speed Combos
- Designed for 370V Cap
- Resilient Rings
- Extended Thru Bolts
- Automatic Protector
- Continuous Duty-Over Air
- Rheem Mounting Holes in Shell
- Open Drip Proof 40°C Ambient
| Type |
Permanent Split Capacitor (PSC)
|
| Horsepower |
1/2, 1/3, 1/4, 1/5, 1/6
|
| Revolutions Per Minute | 1075 |
| Voltage |
115
|
| Amps | 7.0, 6.7, 4.4, 3.2, 2.4 |
| Speed | Four |
| Rotation | Reversible |
| Enclosure |
Open
|
| Capacitor (370V) |
5/7.5/10 MFD
|
| Diameter | 5.5'' |
| Frame Size | 48 |
| Body Length | 4.86'' |
| Shaft Size | 1/2'' × 5'' |
| Leads | 26'' |
| Bearing | Sleeve |
|
Insulation
|
Class B |
| Mount | Belly Band, Thru Bolts or Shell Holes |
