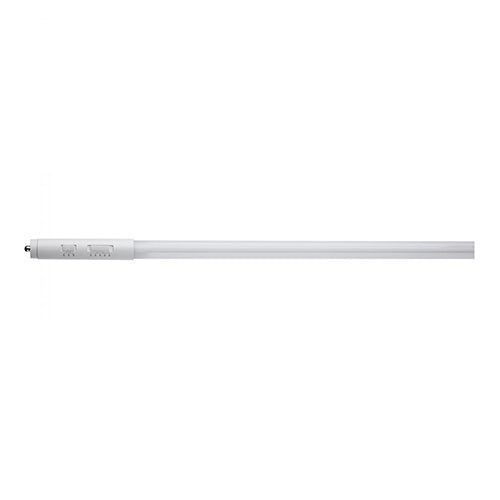

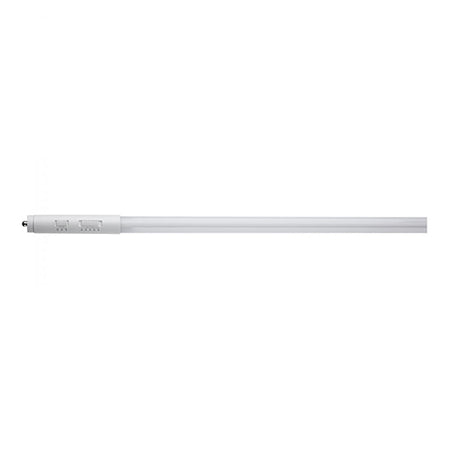

Satco S11756, 8' T8 LED, 24/32/40W, 120-277V, 3000/3500/4000/5000/6500K, 3500/4400/5500 Lumens, Single Pin FA8 Base, White Finish
Regular price
$39.29
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Volts | 120-277V |
| Watts |
24W/32W/40W |
| Incandescent Equivalent | 100W |
| Fluorescent Equivalent | 40W/55W/70W |
| Ballast Type | Type B |
| Shape | T8 |
| Base | Single Pin |
| ANSI Base | Fa8 |
| Nominal Length | 96 |
| Finish | White |
| CCT (Kelvin) | 3000K/3500K/4000K/5000K/6500K |
| Temperature | Soft White to Daylight |
| CRI | 80+ |
| Lumens | 3500L/4400L/5500L |
| Beam Spread | 210 |
| Hours Rated | 50000 |
| Product Category | Linear |
| Technology | LED |
| Ballasting Requirements | Type B Ballast Bypass |
| Operating Frequency | 50/60Hz |
| Power Factor | 0.9 |
| Operating Temperature | -20C (-4F) to +45C (+113F) |
| Physical |
MOL 93.75 MOD 1 Material Glass Housing Color White Weight (lb.) 0.98 |
| Additional Info | 3.5 Watts and 500 Lumens in Battery Backup Mode |
| Shatter-Proof Type | Yes |
| Tube Guard Use | No |
| Includes | (20) R17d Base Adapters and (10) Fastening Clips included per case |
| Shatter-Proof Type | PET Coated |
| Installation Notes | Not for use in vapor tight fixtures. Must use both sections; Provided support clips may differ from current PI Sheet (SN1394). Please refer to the Instruction Sheet provided in the master carton or downloaded from the website, https://www.satco.com/search/S11756 |
| Rated For Enclosed Fixture | Yes |
| Warranty | 5-Years |
| Case Quantity | 10 |
| Safety Listing | cULus; cRUus |
| Location Rating | Damp |
| DLC Approved | Yes |
| DLC ID | S-HPN8SY |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| NSF Approved | Yes |
