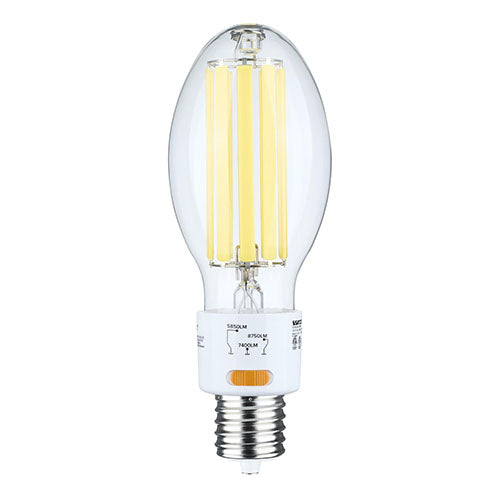

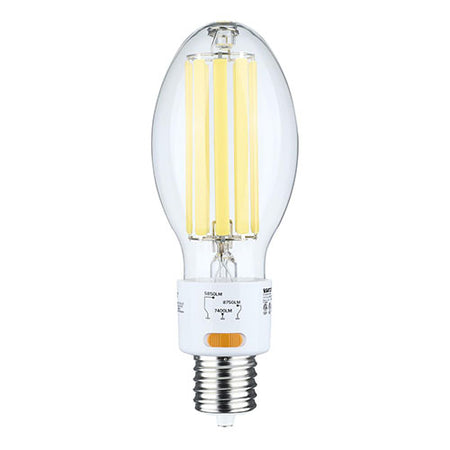

Satco S13196, ED28 LED HID Replacement, 30/38/45W, 120-277V, 5000K Natural Light, 5850/7400/8750 Lumens, Mogul EX39 Base, Clear Finish
Regular price
$94.81
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Volts | 120-277V |
| Watts |
30W/38W/45W |
| HID Equivalent | 150W/250W/320W |
| Shape | ED28 |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | Clear |
| Color Temperature | 5000K Natural Light |
| CRI | 80+ |
| Lumens | 5850L/7400L/8750L |
| Beam Spread | 360 |
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Product Category | LED HID |
| Technology | LED |
| Min Compartment Size | Length: 14.02 in. Width: 8.03 in. Height: 8.03 in. |
| Ballasting Requirements | Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required |
| Operating Frequency | 50/60Hz |
| Candlepower | 500 |
| Dimming Type | Step Dimming |
| Dimming Note | Only dimmable through wattage selection switch on lamp |
| Power Factor | >0.9 |
| Operating Position | Universal |
| Surge Protection | Built-in surge protection - 3KV |
| Operating Temperature | -30C (-22F) to +45C (+113F) |
| Physical |
MOL 9.92 MOD 3.58 Housing Color White Weight (lb.) 0.8 |
| Rated For Enclosed Fixture | Yes |
| Installation Notes | Not for use in vapor tight fixtures. |
| Warranty | 5-Years |
| Case Quantity | 12 |
| Safety Listing | cETLus |
| Location Rating | Wet |
| DLC Approved | Yes |
| DLC ID | S-R38L9D |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
