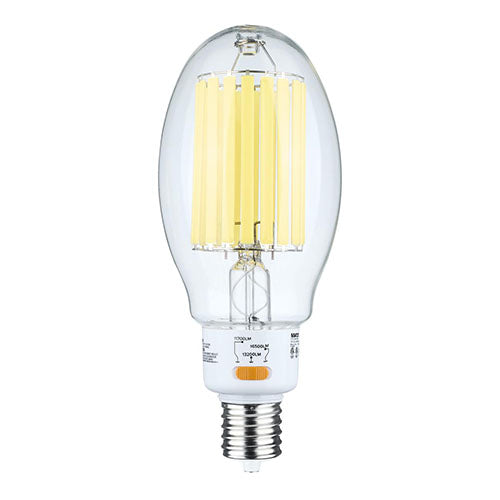

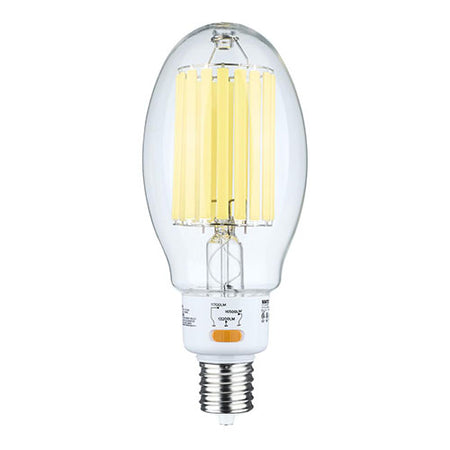

Satco S13197, ED37 LED HID Replacement, 60/68/85W, 120-277V, 5000K Natural Light, 11700/13200/16500 Lumens, Mogul EX39 Base, Clear Finish
Regular price
$133.10
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Volts | 120-277V |
| Watts |
60W/68W/85W |
| HID Equivalent | 320W/400W/450W |
| Shape | ED37 |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | Clear |
| Color Temperature | 5000K Natural Light |
| CRI | 80+ |
| Lumens | 11700L/13200L/16500L |
| Beam Spread | 360 |
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Product Category | LED HID |
| Technology | LED |
| Min Compartment Size | Length: 13.74 in. Width: 16.97 in. Height: 16.97 in. |
| Ballasting Requirements | Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required |
| Operating Frequency | 50/60Hz |
| Candlepower | 850 |
| Dimming Type | Step Dimming |
| Dimming Note | Only dimmable through wattage selection switch on lamp |
| Power Factor | >0.9 |
| Operating Position | Universal |
| Surge Protection | Built-in surge protection - 4KV |
| Operating Temperature | -30C (-22F) to +45C (+113F) |
| Physical |
MOL 11.5 MOD 4.76 Housing Color White Weight (lb.) 1.5 |
| Rated For Enclosed Fixture | Yes |
| Installation Notes | Not for use in vapor tight fixtures. |
| Warranty | 5-Years |
| Case Quantity | 12 |
| Safety Listing | cETLus |
| Location Rating | Wet |
| DLC Approved | Yes |
| DLC ID | S-93J453 |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
