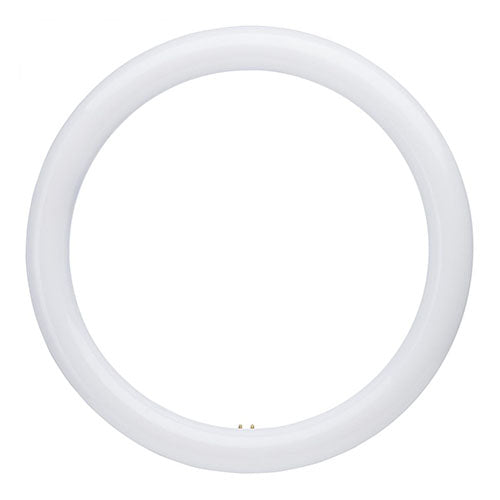

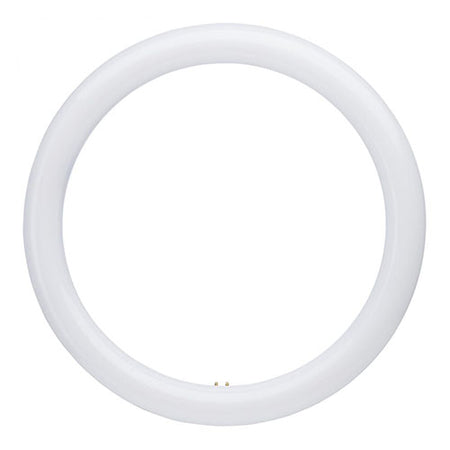

Satco S16511, T9 LED Circline, 16W, 120-277V, 3000/4000/6500K, 1850/2000/1950 Lumens, G10q Base, Frost Finish
Regular price
$26.65
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Volts | 120-277V |
| Watts |
16W |
| Fluorescent Equivalent | 32W |
| Ballast Type | Type A/B |
| Shape | T9 |
| Base | G10q (4-Pin) |
| ANSI Base | G10q |
| Finish | Frost |
| CCT (Kelvin) | 3000K/4000K/6500K |
| Temperature | Soft White to Daylight |
| CRI | 80+ |
| Lumens | 1850L/2000L/1950L |
| Beam Spread | 180 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Product Category | Circline |
| Technology | LED |
| Ballasting Requirements | Ballast required (Type A, Electronic only) or Ballast Bypass (Type B) |
| Operating Frequency | 50/60Hz |
| Operating Temperature | -20C (-4F) to +45C (+113F) |
| Physical |
MOL 11.82 MOD 1.2 Housing Color Frost Weight (lb.) 0.57 |
| Specification Note | Only compatible with Electronic ballasts when installed in Type A mode. See ballast compatibility list for details. Not for use on magnetic ballasts.; Inner Diameter: 9.45 in. |
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | Yes |
| Warranty | 5-Years |
| Case Quantity | 12 |
| Safety Listing | cETLus |
| Location Rating | Damp |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
