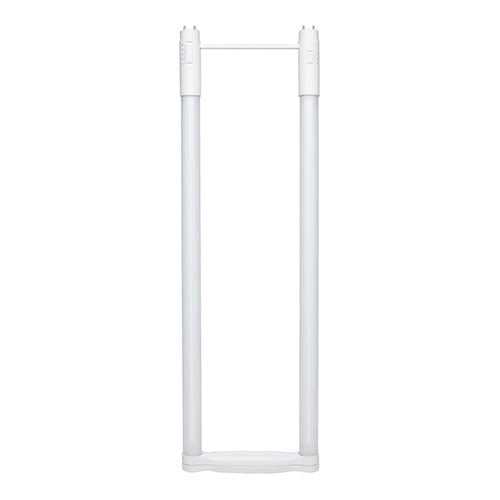

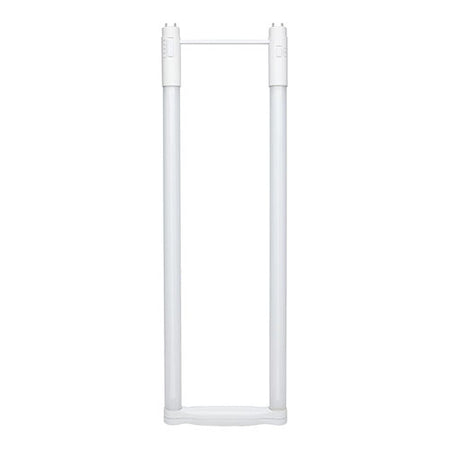

Satco S18413, 6'' T8 U-Bend LED, 11.5/13/15W, 120-277V, 3000/3500/4000/5000/6500K, 1800/2000/2200 Lumens, Medium Bi Pin Base, Frost Finish
Regular price
$24.64
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Volts | 120-277V |
| Watts |
11.5W/13W/15W |
| Incandescent Equivalent | 50W |
| Fluorescent Equivalent | 32W |
| Ballast Type | Type A/B |
| Shape | T8 |
| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Finish | Frost |
| CCT (Kelvin) | 3000K/3500K/4000K/5000K/6500K |
| Temperature | Soft White to Daylight |
| CRI | 80+ |
| Lumens | 1800L/2000L/2200L |
| Beam Spread | 210 |
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Product Category | U-Bend |
| Technology | LED |
| Ballasting Requirements | Ballast required (Type A) or Ballast Bypass (Type B) |
| Operating Frequency | 50/60Hz |
| Dimming Note | Only in Type A mode; Check Ballast MFG for Dimmer Compatibility |
| Power Factor | >0.9 |
| Operating Temperature | -20C (-4F) to +45C (+113F) |
| Physical |
MOL 22.43 MOD 0.96 Leg Spacing 5.98 Material Glass Lens Finish Frost Lens Material Glass Housing Color White Weight (lb.) 0.55 |
| Installation Notes | Not for use in vapor tight fixtures. Direct replacement for 32W T8 U6 lamps only. |
| Rated For Enclosed Fixture | Yes |
| Warranty | 5-Years |
| Case Quantity | 12 |
| Safety Listing | cULus |
| Location Rating | Damp |
| DLC Approved | Yes |
| DLC ID | S-GDKRYT |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| NSF Approved | Yes |
