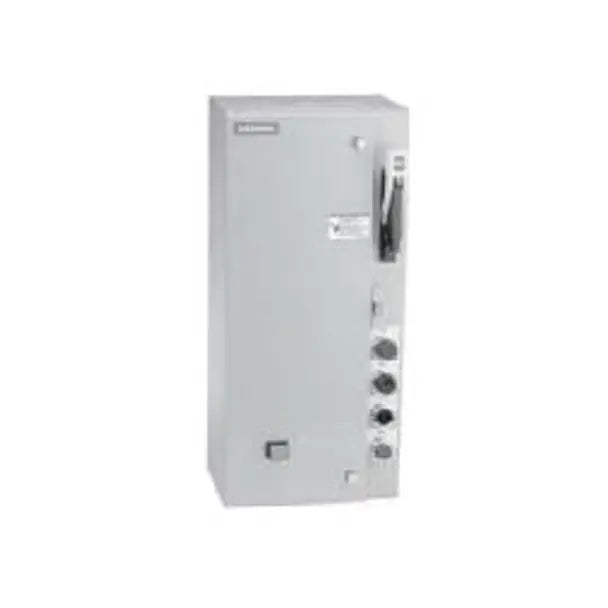

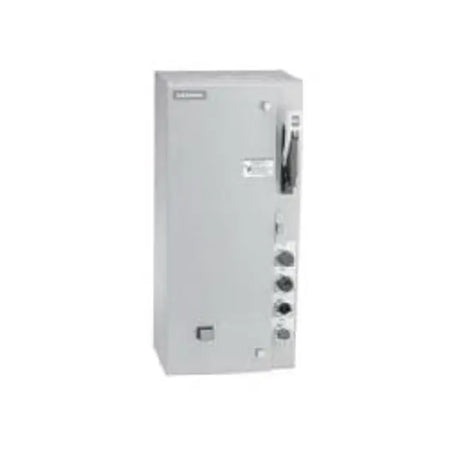

Siemens 17DUD92NF11M25, Size 1 Class 17 Heavy Duty Non-Reversing Standard Width NEMA Combination Starter With Fusible Disconnect, 110/120 VAC V Coil, 3 Poles, NEMA 3/3R/4/12 Enclosure
Regular price
$7,103.52
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Non-reversing motor starter, Size 1, Three phase full voltage, Solid-state overload relay, OLR amp range 5.5-22A, 110V 50Hz / 120V 60Hz coil, Combination type, 30A fusible disconnect, 30A/600V fuse clip, Enclosure NEMA type 4/12, Water/dust tight for outdoors, Standard width enclosure Start-Stop Push Buttons Red On Pilot Light Green Off Pilot Light
Pre-order in 3 Days
| Phase | 3 |
| Application | Industrial and General Purpose Applications |
| Enclosure Type | NEMA 3/3R/4/12 |
| Frequency Rating | 50/60 |
| Dimensions | 24 in H x 11 in W x 8 in D |
| Coil Voltage | 110/120 |
| Overload Relay | Solid-State |
| Type | SZ 1 Class 17 Heavy Duty Non-Reversing Standard Width |
| Motor Power | 10 hp |
