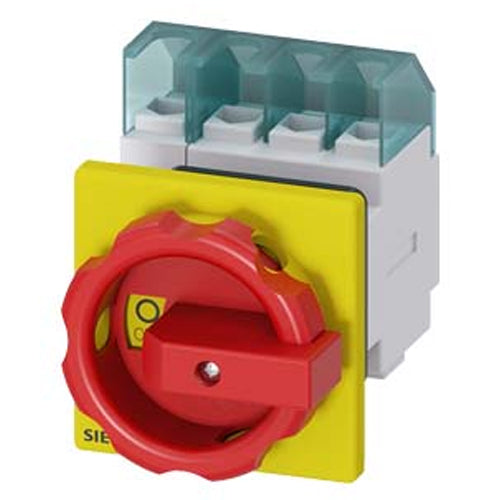

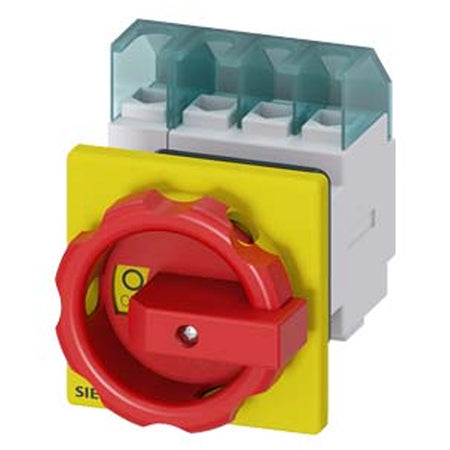

Siemens 3LD21541TL53, SENTRON, Switch Disconnector 3LD, Emergency Switching-Off Switch, 4- Pole, Iu: 25 A, Operating Power / at AC-23 A 400 V: 9.5 KW, Front-Mounted, Rotary Operating Mechanism, Red / Yellow, Central Mounting 22.5 mm of the Handle
Regular price
$306.23
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Pre-order in 3 Days
| Model | 3LD2154-1TL53 |
| Product Brand Name | SENTRON |
| Product Designation | Switch disconnector |
| Design of the Product | EMERGENCY-STOP switch |
| Display Version for Switch Position Indicator Manual Operation | 1 ON - 0 OFF |
| Type of Switch | front mounted |
| Design of the Actuating Element | Short rotary knob |
| Color of the Actuating Element | red |
| Design of Handle | rotary operating mechanism, red/yellow |
| Type of the Driving Mechanism Motor Drive | No |
| Number of Poles | 4 |
| Size of Switch Disconnector | 2 |
| Operational Current Rated Value | 25 A |
| Dimensions | 84x67x117mm |
| Operating Temperature | -25°C - +55°C |
