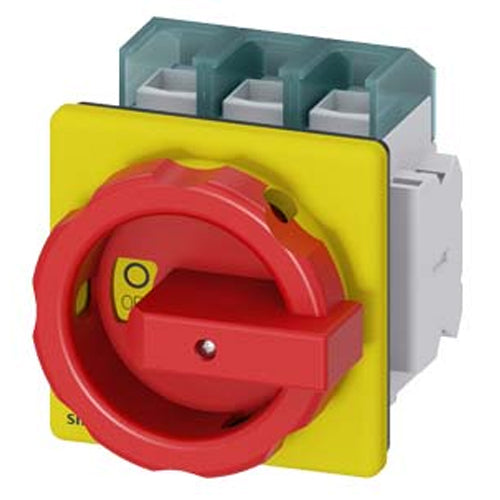

Siemens 3LD27041TP53, SENTRON, Switch Disconnector 3LD, Emergency Switching-Off Switch, 3- Pole, Iu: 100 A, Operating Power / at AC-23 A 400 V: 37 KW, Front-Mounted, 1 NC, 1 NO, Rotary Operating Mechanism, Red / Yellow, 4-Hole Mounting of the Handle
Regular price
$752.71
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Pre-order in 3 Days
| Model | 3LD2704-1TP53 |
| Product Brand Name | SENTRON |
| Product Designation | Switch disconnector |
| Design of the Product | EMERGENCY-STOP switch |
| Display Version for Switch Position Indicator Manual Operation | 1 ON - 0 OFF |
| Type of Switch | front mounted |
| Design of the Actuating Element | Short rotary knob |
| Color of the Actuating Element | red |
| Design of Handle | rotary operating mechanism, red/yellow |
| Type of the Driving Mechanism Motor Drive | No |
| Number of Poles | 3 |
| Size of Switch Disconnector | 3 |
| Operational Current Rated Value | 100 A |
| Dimensions | 107 x 90 x 112.5mm |
| Operating Temperature | -25°C - +55°C |
