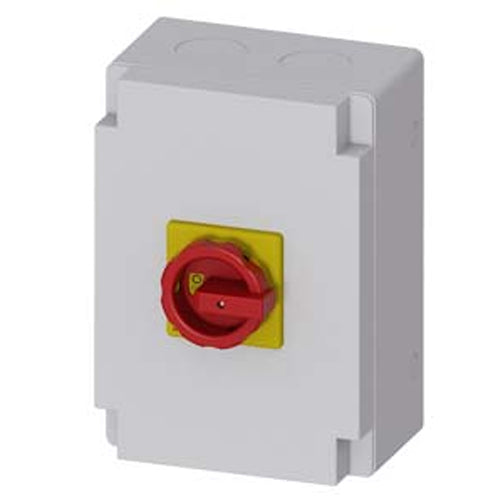

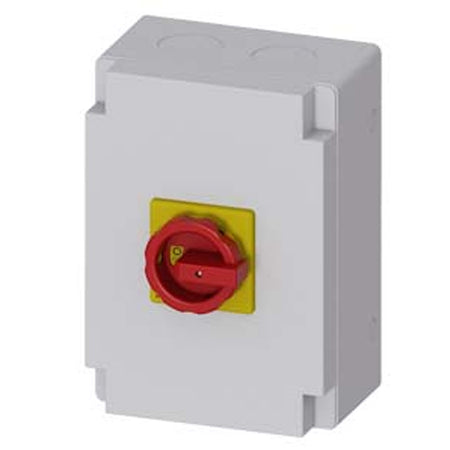

Siemens 3LD27660TB530US2, SENTRON, Switch Disconnector 3LD, Emergency Switching-Off Switch, 3- Pole, Iu: 100 A, Operating Power / at AC-23 A 400 V: 37 KW, Molded Plastic Encapsulation for Inch Cable Gland, Rotary Operating Mechanism, Red/Yellow
Regular price
$2,175.12
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Pre-order in 10 Days
| Model | 3LD2766-0TB53-0US2 |
| Product Brand Name | SENTRON |
| Product Designation | Switch disconnector |
| Design of the Product | EMERGENCY-STOP switch |
| Display Version for Switch Position Indicator Manual Operation | 1 ON - 0 OFF |
| Type of Switch | Molded-plastic enclosure for inch threaded joint |
| Design of the Actuating Element | Short rotary knob |
| Color of the Actuating Element | red |
| Design of Handle | rotary operating mechanism, red/yellow |
| Type of the Driving Mechanism Motor Drive | No |
| Number of Poles | 3 |
| Number of Poles Note | N + PE |
| Size of Switch Disconnector | 4 |
| Operational Current Rated Value | 100 A |
| Dimensions | 302 x 212 x 181mm |
| Operating Temperature | -25°C - +55°C |
