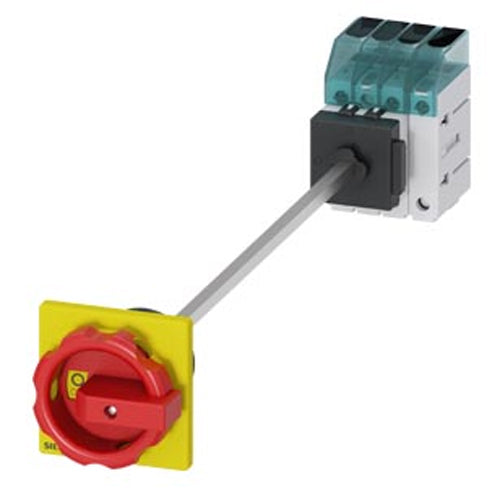

Siemens 3LD31480TL53, Load Disconnector 3LD3, Iu 25 A Main Switch 3-Pole + N Rated Operating Capacity at AC-23 A at 400V 9.0KW Floor Mounting Basic Switch with Door Coupling Central Hole Mounting 22.5mm Rotary Actuator Red / Yellow 66 X 66 mm
Regular price
$329.13
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Pre-order in 3 Days
| Model | 3LD3148-0TL53 |
| Product Brand Name | SENTRON |
| Product Designation | Switch disconnector |
| Design of the Product | EMERGENCY-STOP switch |
| Display Version for Switch Position Indicator Manual Operation | 1 ON - 0 OFF |
| Type of Switch | Floor mounting with door coupling |
| Design of the Actuating Element | Short rotary knob |
| Color of the Actuating Element | red |
| Design of Handle | rotary operating mechanism, black |
| Type of the Driving Mechanism Motor Drive | No |
| Number of Poles | 3 |
| Number of Poles Note | 3 |
| Operational Current Rated Value | 25 A |
| Dimensions | 60 x 49 x 380mm |
| Operating Temperature | -25°C - +55°C |
