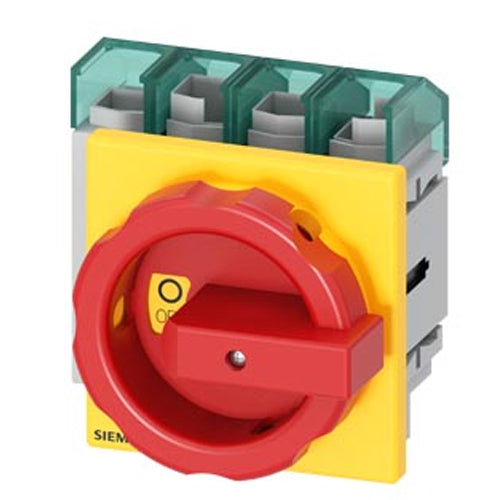

Siemens 3LD52200TL13, SENTRON 3LD5 Switch Disconnector UL, Emergency-OFF Switch, 4-Pole, Operational Power at AC-23 A at 400 V: 30 KW, Front-Mounted, Rotary Operating Mechanism, Red/Yellow
Regular price
$933.01
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Pre-order in 3 Days
SENTRON 3LD5 switch disconnector UL, EMERGENCY-OFF switch, 4-pole, approved according to UL 489, UL 60947-4-1 and IEC 60947-3, UL: 60 A, SCCR 50 kA at 480 V AC, operational power @ 480 V AC 3-phase: 40 hp, IEC: 63 A, operational power at AC-23 A at 400 V: 30 kW, front-mounted, rotary operating mechanism, red/yellow, 4-hole mounting of the handle, including terminal covers for the infeed side
| Model | 3LD5220-0TL13 |
| Product Brand Name | SENTRON |
| Product Designation | Switch disconnector |
| Design of the Product | EMERGENCY-STOP switch |
| Display Version for Switch Position Indicator Manual Operation | 1 ON - 0 OFF |
| Type of Switch | front mounted |
| Design of the Actuating Element | Short rotary knob |
| Color of the Actuating Element | red |
| Design of Handle | rotary operating mechanism, red/yellow |
| Type of the Driving Mechanism Motor Drive | No |
| Number of Poles | 4 |
| Number of Poles Note | 2 |
| Operational Current Rated Value | 60 A |
| Dimensions | 104 x 103 x 108mm |
| Operating Temperature | -25°C - +55°C |
