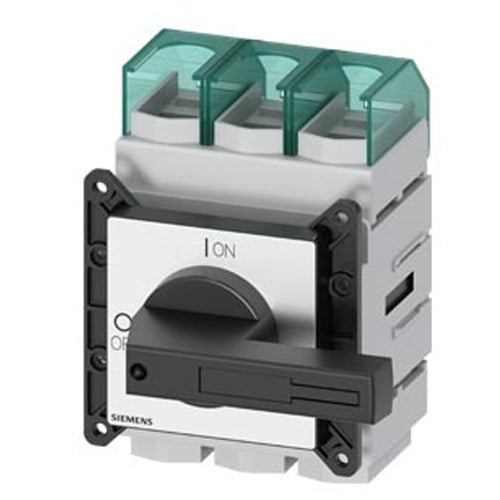

Siemens 3LD54200TK11, SENTRON 3LD5 Switch Disconnector UL, Main Switch, 3-Pole, Operational Power at AC-23 A at 400 V: 45 KW, Front-Mounted: Rotary Operating Mechanism, Black
Regular price
$1,306.98
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Pre-order in 3 Days
SENTRON 3LD5 switch disconnector UL, main switch, 3-pole, approved according to UL 489, UL 60947-4-1 and IEC 60947-3, UL: 100 A, SCCR 65 kA at 480 V AC, operational power @ 480 V AC 3-phase: 60 hp, IEC: 100 A, operational power at AC-23 A at 400 V: 45 kW, front-mounted: rotary operating mechanism, black, 4-hole mounting of the handle, including terminal covers for the infeed side infeed side
| Model | 3LD5420-0TK11 |
| Product Brand Name | SENTRON |
| Product Designation | Switch disconnector |
| Design of the Product | Main switch |
| Display Version for Switch Position Indicator Manual Operation | 1 ON - 0 OFF |
| Type of Switch | front mounted |
| Design of the Actuating Element | selector switch |
| Color of the Actuating Element | black |
| Design of Handle | knob-operated mechanism, black |
| Type of the Driving Mechanism Motor Drive | No |
| Number of Poles | 3 |
| Number of Poles Note | 3 |
| Operational Current Rated Value | 100 A |
| Dimensions | 178 x 113 x 93mm |
| Operating Temperature | -25°C - +55°C |
