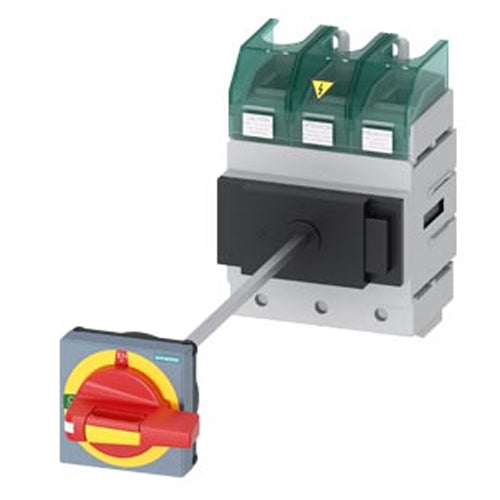

Siemens 3LD56100TK13, SENTRON 3LD5 Switch Disconnector UL, EMERGENCY-OFF Switch, 3-Pole, Operational Power at AC-23 A at 400 V: 55 KW, Floor Mounting with Door Coupling, Defeatable Rotary Operating Mechanism
Regular price
$1,659.96
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Pre-order in 3 Days
SENTRON 3LD5 switch disconnector UL, EMERGENCY-OFF switch, 3-pole, approved according to UL 489, UL 60947-4-1 and IEC 60947-3, UL: 125 A, SCCR 65 kA at 480 V AC, operational power @ 480 V AC 3-phase: 75 hp, IEC: 125 A, operational power at AC-23 A at 400 V: 55 kW, floor mounting with door coupling, defeatable rotary operating mechanism, EMERGENCY OFF, 4-hole mounting of the handle, without tolerance compensation including terminal covers for the infeed side
| Model | 3LD5610-0TK13 |
| Product Brand Name | SENTRON |
| Product Designation | Switch disconnector |
| Design of the Product | EMERGENCY-STOP switch |
| Display Version for Switch Position Indicator Manual Operation | 1 ON - 0 OFF |
| Type of Switch | Floor mounting with door coupling |
| Design of the Actuating Element | door-coupling rotary operating mechanism |
| Color of the Actuating Element | red |
| Design of Handle | rotary operating mechanism, red/yellow |
| Type of the Driving Mechanism Motor Drive | No |
| Number of Poles | 3 |
| Number of Poles Note | 3 |
| Operational Current Rated Value | 125 A |
| Dimensions | 178 x 113 x 158mm |
| Operating Temperature | -25°C - +55°C |
