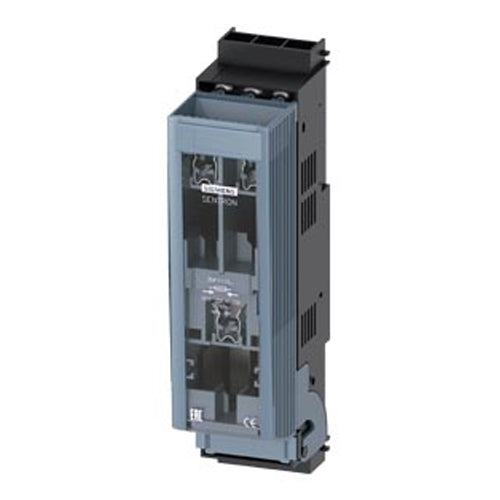

Siemens 3NP11131CA20, SENTRON, Fuse Switch Disconnector 3NP1, 3-Pole, NH000 Narrow, 125 A, For Assembly And Installation On Mounting Plate, Box Terminal, Cover Level 45 mm
Regular price
$232.20
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Pre-order in 3 Days
| Article Number | 3NP1113-1CA20 |
| Product Designation | Fuse Switch Disconnector |
| Design Of The Safety Monitoring | Without |
| Design Of The Load Switch Strip Form | No |
| Type Of The Driving Mechanism Motor Drive | No |
| Number Of Poles | 3 |
| Type Of Device | For assembly and installation on mounting plate |
| Size Of Disconnecting Link | 0 |
| Size Of Fuse Link | NH000 |
| Mechanical Service Life (Operating Cycles) Typical | 2 000 |
| Power Factor |
● at AC-22 B 0.65 ● at AC-23 B 0.35 |
| Fuse System | LV HRC fuse |
| Degree Of Pollution | 2 |
| Operational Current Rated Value | 125 A |
| Dimensions | 216 x 53 x 89mm |
| Fastening Method | Mounting Plate |
| Mounting Position | horizontal/vertical |
| Operating Temperature | -25 °C - 70 °C |
