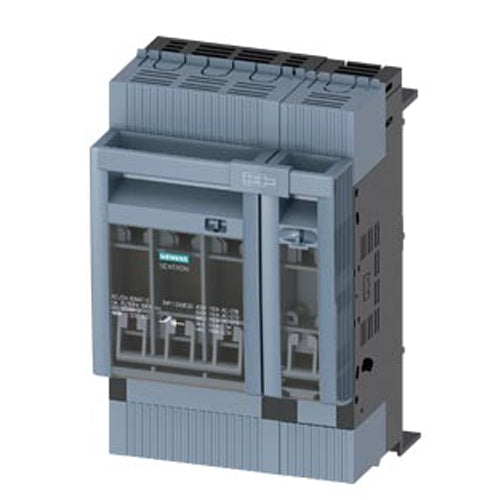

Siemens 3NP11241BC20, SENTRON, Fuse Switch Disconnector 3NP1, 4-Pole, NH000, 160 A, For 8US Busbar System 60 mm, Box Terminal, Cover Level 32/70 mm
Regular price
$533.25
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Pre-order in 3 Days
| Article Number | 3NP1124-1BC20 |
| Product Designation | Fuse Switch Disconnector |
| Busbar Design | busbar thickness 5 or 10 mm |
| Design Of The Safety Monitoring | Without |
| Design Of The Load Switch Strip Form | No |
| Type Of The Driving Mechanism Motor Drive | No |
| Number Of Poles | 4 |
| Type Of Device | For 60 mm 8US busbar system |
| Size Of Disconnecting Link | 000 |
| Size Of Fuse Link | NH000 |
| Mechanical Service Life (Operating Cycles) Typical | 2 000 |
| Power Factor |
● at AC-22 B 0.65 ● at AC-23 B 0.35 ● with capacitive load -0.25 |
| Fuse System | LV HRC fuse |
| Degree Of Pollution | 3 |
| Operational Current Rated Value | 160 A |
| Dimensions | 207 x 127.6 x 127.6mm |
| Fastening Method | busbar |
| Mounting Position | horizontal/vertical |
| Operating Temperature | -25 °C - 55 °C |
