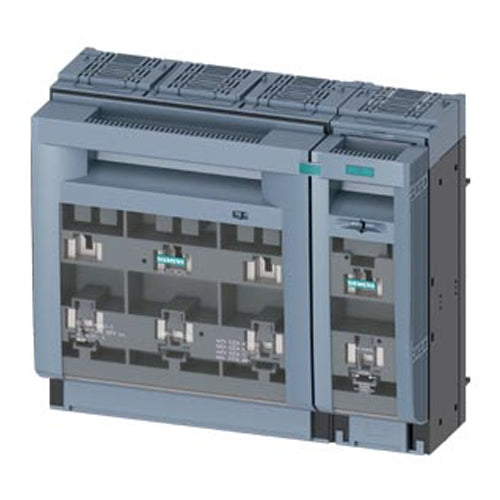

Siemens 3NP11641BC20, SENTRON, Fuse Switch Disconnector 3NP1, 4-Pole, NH3, 630 A, For 60mm 8US Busbar System, Box Terminal, Cover Level 32/70 mm
Regular price
$3,307.50
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Pre-order in 15 Days
| Article Number | 3NP1164-1BC20 |
| Product Designation | Fuse Switch Disconnector |
| Busbar Design | busbar thickness 5 or 10 mm |
| Design Of The Safety Monitoring | Without |
| Design Of The Load Switch Strip Form | No |
| Type Of The Driving Mechanism Motor Drive | No |
| Number Of Poles | 4 |
| Type Of Device | For 60 mm 8US busbar system |
| Size Of Disconnecting Link | 3 and 2 |
| Size Of Fuse Link | NH2, NH3 |
| Mechanical Service Life (Operating Cycles) Typical | 1 000 |
| Power Factor |
● at AC-22 B 0.65 ● at AC-23 B 0.35 ● with capacitive load -0.25 |
| Fuse System | LV HRC fuse |
| Degree Of Pollution | 3 |
| Operational Current Rated Value | 630 A |
| Dimensions | 306 x 339 x 164.5mm |
| Fastening Method | busbar |
| Mounting Position | horizontal/vertical |
| Operating Temperature | -25 °C - 55 °C |
