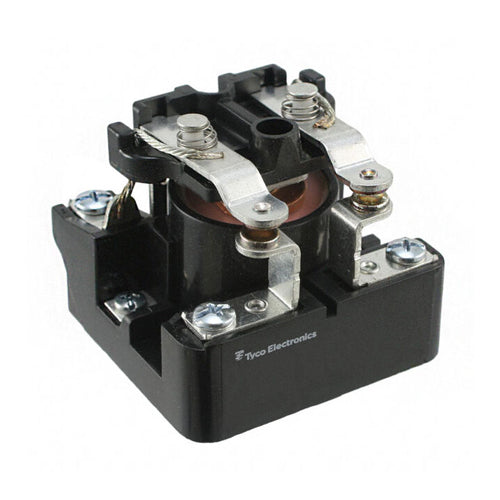

TE Connectivity PRD-7AY0-120, PRD Series Power Relay, DPST-NO (2 Form A), 120VAC Coil, 25A, Class B, Screw Terminal, Non Latching
Regular price
$135.52
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Product Category | Industrial Relays |
| Mounting Style | Panel Mount |
| Coil Voltage | 120VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 600VAC, 125VDC |
| Coil Current | 85 mA |
| Coil Type | Non Latching |
| Termination Style | Screw Terminal |
| Coil Insulation | Class B |
| Must Operate Voltage | 102 VAC |
| Must Release Voltage | 12 VAC |
| Operate Time | 40 ms |
| Release Time | 20 ms |
|
Operating Temperature
|
-55°C ~ 45°C |
| Contact Material | Silver (Ag) |
|
Relay Type
|
General Purpose |
| Length | 85.7 mm |
| Width | 63.8 mm |
| Height | 63.5 mm |
| Approval Agency | CSA, UL |
