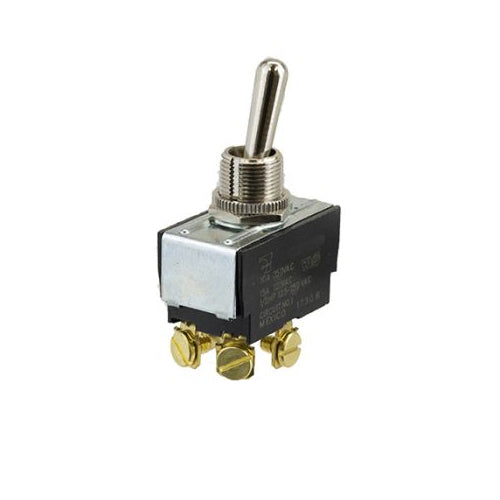

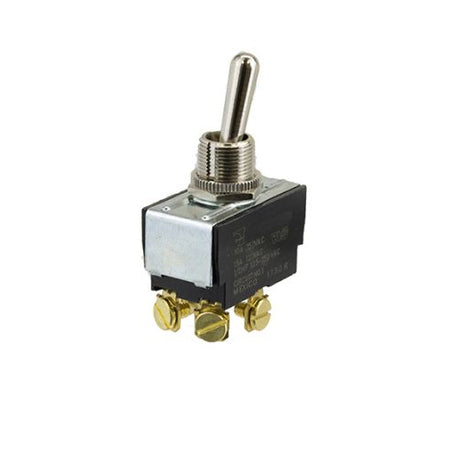

Techspan 35-3135, Heavy Duty Toggle Switch, On-On-Off, Progressive Two Circuit, 15A, Brass Bat Actuator, Screw Terminal
Regular price
$34.37
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Circuit Function | 1&2 On - 1 On - Off |
| Poles / Throws | Progressive Two Circuit |
| Amps | 15A |
| Amps1 | 15A @125VAC |
| Amps3 | 10A @250VAC |
| HP | 1/2 @125-250VAC |
| Nominal Voltage | 125V |
| Actuator Style | Bat |
| Actuator Material | Brass |
| Bushing Length | 0.4685'' |
| Mounting Hole | 0.5'' |
| Terminal Type | Screw |
| Hardware | Nut, Face Nut, Screw |
