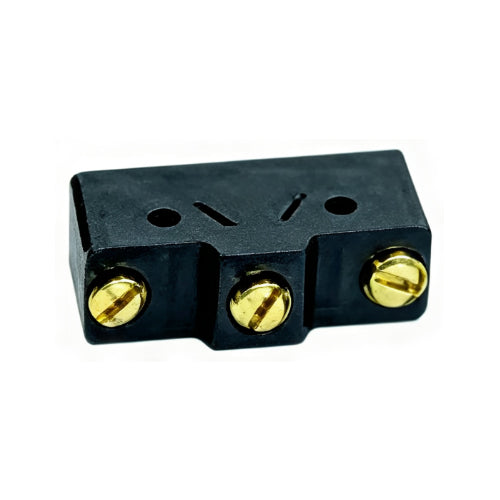

Techspan 35-3903, General Purpose Snap Action Switch, Single Pole/Double Throw (SPDT), 20A, Stub Plunger Actuator, Screw Terminal
Regular price
$71.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Poles / Throws | SPDT (Single Pole, Double Throw) |
| Amps | 20A |
| Amps2 | 20A @125/250/480VAC |
| Amps3 | 1/2A @125 VDC |
| Amps4 | 1/4A @250 VDC |
| Horse Power | 3/4HP @125VAC |
| Horse Power1 | 1-1/2HP @250VAC |
| Nominal Voltage | 125/250V |
| Pre-Travel Max. | 0.02'' |
| Over Travel Max. | 0.055'' |
| Differential Travel Max. | 0.002'' |
| Operating Force Max. | 12.3 Oz. (350 Grams) |
| Actuator | Stub Plunger |
| Terminal Type | Screw |
