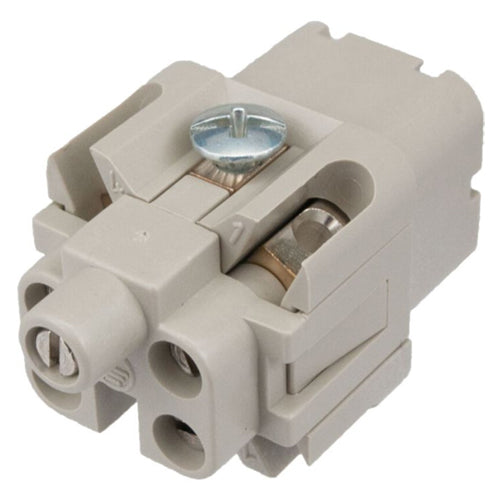

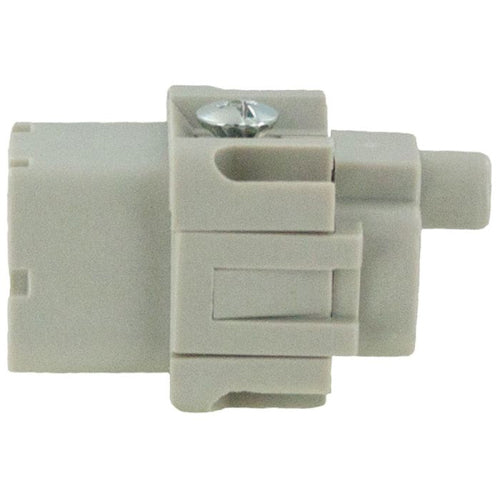

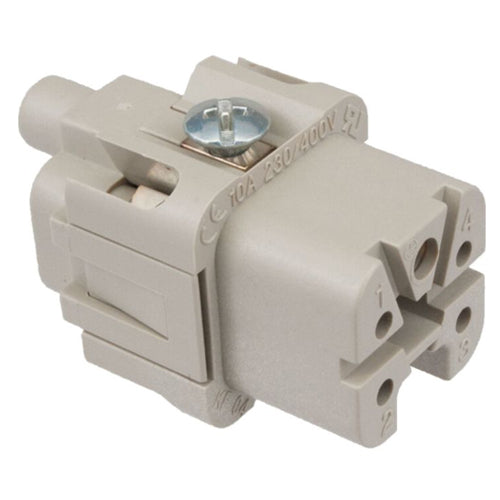

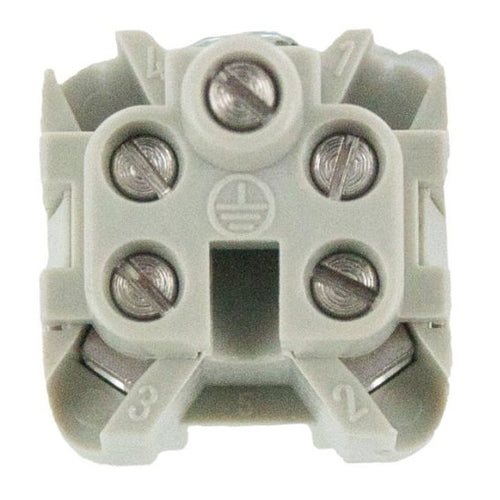

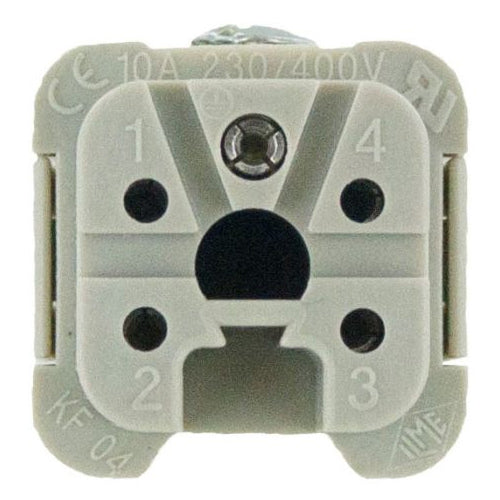

Techspan A04RS, A Series Multipole Connector, Screw Termination, Female Insert, 4 Poles+Ground, 10A/600V, A Size Enclosure, Straight Mounting
Regular price
$14.25
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Protection Degree: IP65/IP66/IP69
- Minimum operating ambient temperature: -40°C (for most inserts)
- Maximum operating ambient temperature: 125°C (for most inserts)
- Self-extinguishing GW test: 960°C
- Self-extinguishing UL 94: V0
- IK degree at 20°C: IK10 (20J)
| Style | Insert |
| Series | A |
| Number of Poles | 4 |
| Gender | Female Receptacle |
| Connection Type | Screw Terminal Connection |
| Voltage | 600V |
| Amps | 10A |
| Mounting | Straight |
| Enclosure Size | A - 21 x 21 mm |
| Certifications | cULus, CSA |
