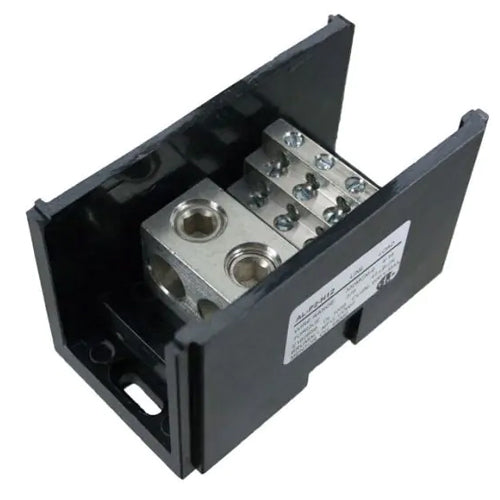

Techspan ADB2123501, ADB-212-350-1, Aluminum Power Distribution Block, Double Run with Multiple Taps, 620A, Line Side 2 Openings for 350 kcmil-6 AWG, Load Side 12 Openings for 4-14 AWG
Regular price
$80.80
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Tongue and groove design enables blocks to be easily assembled – just slip and lock into place the number of poles needed for a specific job.
- All block sizes will interlock with one another allowing for custom configurations.
- Modular design eliminates the need to carry 2 and 3 pole blocks in stock, reducing inventory costs and improving customer satisfaction.
- Aluminum Power Distribution Blocks are manufactured from high strength aluminum alloy and tin-plated for corrosion resistance
- DUAL RATED – UL recognized and CSA certified 600 V and 90°C rated for both aluminum and copper conductors.
- Range taking provides tapping flexibility over a broad wire range
- Molded blocks are manufactured from a high strength glass-filled polyester insulating material providing excellent overall electrical properties and flame resistance.
- Clear, high impact resistant covers are available.
| Wire Range (Run) | 350 kcmil - 6 AWG |
| Openings Per Pole (Run) | 2 |
| Hex Size (Run) | 3/8'' |
| Wire Range (Tap) | 4 - 14 AWG |
| Openings Per Pole (Tap) | 12 |
| Hex Size (Tap) | Slot |
| Amp Rating Per Pole | 620A |
| Block Size | L |
| Certifications | CSA, cULus, RoHS |
