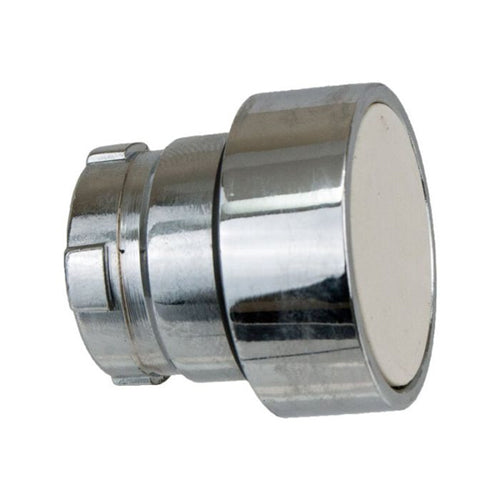

Techspan PB-BA18, Flush Push Button with Transparent Boot, Spring Return, Chromium Plated Metal Bezel, White
Regular price
$11.07
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type - Push Button | Flush Push Button Spring Return with Transparent Boot IP66 |
| Cabling/Terminal Capacity | 1x0.5mm² and 2x1.5mm² |
| Colour | White |
| Contact Operation | Slow Action, Positive Opening |
| Dielectric Strength | 2.5KV for 1 Minute |
| Initial Contact Resistance | ≤ 25 milli Ohm |
| Insulation Category | Group C conforming to NF C 20-040, VDE 0110 |
| Insulation Resistance | 2M Ohm min (500 VDC) |
| Knob Size | Ø ≤ 25mm |
| Mechanical Life | All working positions are allowed |
| Operating Force | Push Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N |
| Pollution Degree | 3 |
| Protection Degree | IP65 |
| Rated Insulation Voltage | 500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14 |
| Rated Power | Conforming to IEC 60947-5-1: utilization categories AC 15 & DC 13 |
| Rated Thermal Current | 10A |
| Reference Standard | IEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14 |
| Shock Resistance | Push Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27 |
| Short Circuits Protection | 10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1 |
| Temperature | -40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working) |
|
Vibration Resistance |
60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40Hz |
| Working Position | All Working positions are allowed |
| Certifications | cULus, CSA |
