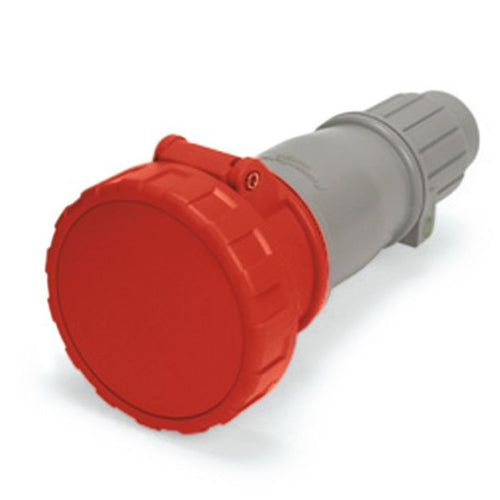

Techspan SCM3100C7W, Pin and Sleeve Connector, 100A 480V, 2-Pole 3-Wire Grounding, Watertight (IP67) NEMA, Clock Position 7H, Red
Regular price
$658.26
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Rated current: 20A, 30A, 60A, 100A
- Rated voltage: 100–690V~; Frequency: DC, 50–500Hz; Insulating voltage: 500/690V~
- Operating ambient temperature: -25°C to +40°C (standard); max up to +70°C
- High durability ratings: IK10 (20J) impact resistance; self-extinguishing GW test 650°C / 850°C and UL94 V1 (3mm)
- Inter-mateable with other IEC 60309 devices; tool-less design available for 20A & 30A for faster installation
- Protection degree (IEC 60529): IP44 - IP67
- Material: VALOX® (Non-Leaching)
| Series | Pin and Sleeve Devices |
| Rated Current | 100A |
| Rated Voltage | 480V |
| Colour Coding | Red |
| Clock Position | 7H |
| Poles | 2-Pole |
| Wires | 3-Wire |
| Frequency | D.C. - 50 - 500Hz |
| Protection Degree | IP67 |
| IK Degree at 20 | IK10 (20J) |
| Corrosion Resistance | All Metallic Components Stainless Steel or Nickel Plated Brass. Sleeve Pressure Rings of Zinc Plated Steel. |
| Cable Bushing | Solid Neoprene, Onion Ring Type |
| O-Ring, Seals & Gaskets | Solid Neoprene |
| Pin & Sleeves | Nickel Plated Brass |
| Sleeve Force Ring | Zinc Plated Steel |
| Terminal Screws | Nickel Plated Steel |
| Flap/Screw Cover Springs | Stainless Steel |
| SNAP-ON Spring | Stainless Steel |
| Operating Ambient Temperature | -25°C + 40°C |
| Certifications | cULus |
