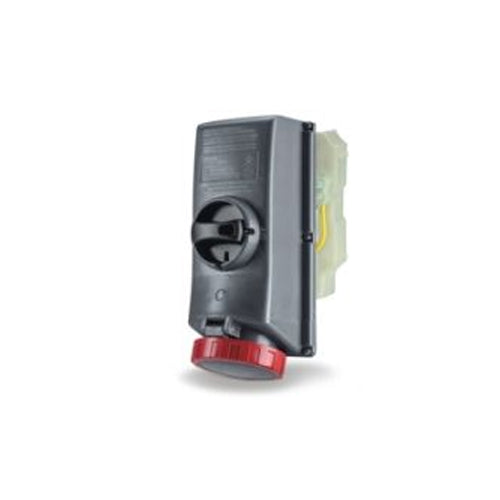

Techspan SCM320MI7W-NB, Unfused Mechanical Interlock without Base, 20A 480V, 2-Pole 3-Wire Grounding, Clock Position 7H, Red
Regular price
$787.47
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
- Rated current: 20A, 30A, 60A; Rated voltage: 100–600V~; Frequency: 50–60Hz; Insulating voltage: 500/690V~
- Protection ratings: IP66, IP67, IP69; UL 94 classifications: Type 3R, 4/4X, 12
- Operating temperature range: -40°C to +70°C (standard -25°C to +40°C per reference)
- High safety performance: IK10 (20J) impact resistance; self-extinguishing GW test 960°C; UL94 V0 rating
- Constructed from durable thermosetting material; colour: grey RAL7037
- Inter-mateable with other IEC 60309 devices for system compatibility
| Series | Pin and Sleeve Devices |
| Type | Without Base |
| Rated Current | 20A |
| Rated Voltage | 480V |
| Colour Coding | Red |
| Clock Position | 7H |
| Poles | 2-Pole |
| Wires | 3-Wire |
| Frequency | 50 - 60Hz |
| Protection Degree | IP66/IP67/IP69 (UL 94 TYPE 3R, 4/4X,12) |
| Terminal Capacity Wire Size Range | 16-6 AWG |
| Padlock to be Used - Ø D (mm) | 5 |
| Operating Temperature | -25°C + 40°C |
| Certifications | cULus |
