Votatec BAA-015 /WH, USB Charger & Tamper-Resistant Duplex Receptacle (TR) TYPE A+C, 15A 125V, White
Regular price
$18.90
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

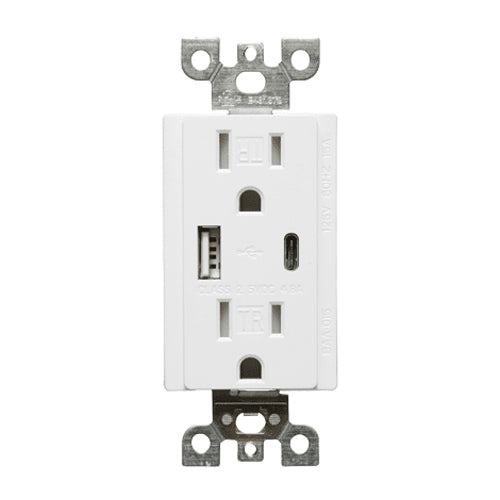

The BAA-015 puts a USB-A port and a USB-C port on a standard 15A tamper-resistant duplex receptacle, so phones and tablets charge without an adapter and without giving up an outlet.
Both USB ports share 4.8A at 5VDC. The receptacle is 15A, 125VAC, and takes #14 to #10 AWG copper. Tamper-resistant shutters are standard.
UL listed to UL 498 and CSA C22.2 No. 42. Two-year warranty.
| Rated Voltage | 125V,60Hz |
| Rated Current | 15A |
| Insulation Resistance | >50MΩ (DC500V) |
| USB Voltage & Current | 5VDC 4.8A |
| Housing material | flame retardant grades UL94-V2 |
| Unloaded plug | ≥5000Sec Loop detection |
| Type | A+C |
| Electric strength | Pressure resistance 1500V 50Hz Duration 1 Min |
| Temperature | -20°C~60°C |
| Color | White |
| Certifications | CUL-Listed, FCC, ROHS |
| Warranty | 2-Year Limited |
