Votatec BAA-023 /BK, USB Charger & Tamper-Resistant Duplex Receptacle (TR) TYPE A, 15A 125V, 5-15R, Black
Regular price
$16.20
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

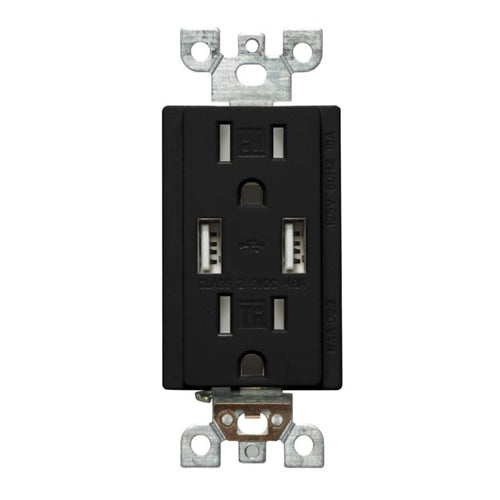

Two USB-A charging ports on a 15A tamper-resistant duplex receptacle, so a standard wall box charges phones and tablets without a plug-in adapter.
Both outlets are NEMA 5-15R, 125V, 60Hz, with tamper-resistant shutters. The USB ports share one Class 2 5VDC supply. Back and side wire terminals take #14 to #10AWG copper.
Polycarbonate cover, zinc-plated mounting brackets, UL94-V2 housing. UL listed to UL 498 and CSA C22.2 No. 42. Two-year warranty.
| Rated Voltage | 125V,60Hz |
| Rated Current | 15A |
| Insulation Resistance | >50MΩ (DC500V) |
| USB Voltage & Current | 5VDC 4A |
| Housing material | flame retardant grades UL94-V2 |
| Unloaded plug | ≥5000Sec Loop detection |
| Type | A |
| Electric strength | Pressure resistance 1500V 50Hz Duration 1 Min |
| Temperature | -20°C~60°C |
| Color | Black |
| Certifications | CUL-Listed, FCC, ROHS |
| Warranty | 2-Year Limited |
