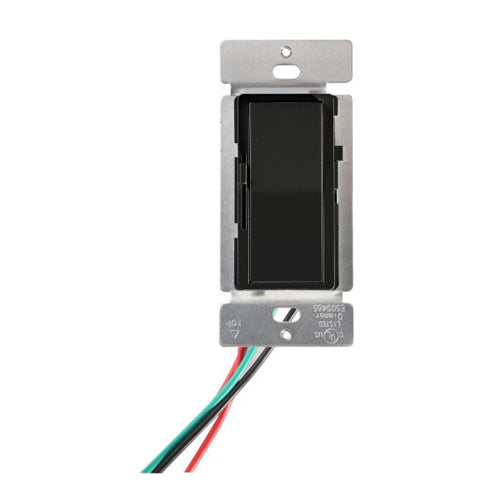

Votatec BAK-004AG /BK, 3Way Slide Dimmer, Class A, for 600W Incandescent/150W CFL & LED, 120V/60Hz, 40000 times, Black
Regular price
$18.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The BAK-004AG slide dimmer wires as either a single-pole or a 3-way control, so one part number covers both positions on a job.
It takes 600W of incandescent or halogen, or 150W of dimmable LED or CFL at 2A, on 120VAC 60Hz. Minimum load is 7W.
Built for the trade: cULus Listed to UL 1472, 40,000-cycle mechanical life, a UL94-V2 shell, and a low-end trim you set at install.
| Rated voltage | 120V,60Hz |
| Rated power | 600W Incandescent / 150W CFL & LED |
| Switch Times | 40000 times |
| Type | 3Way |
| Insulation Resistance | >10MΩ (DC500V) |
| Cable Specification | 18AWG |
| Operating Temperature | -20°C~60°C |
| Option | Class A |
| Color | Black |
| Electrical clearance | 1.2mm between live parts & 3mm between live parts & other parts |
| Creepage distance | ≥3mm |
| Certifications | UL-Listed, FCC, ROHS |
| Warranty | 2-Year Limited |
