Votatec JL-103AG, Photoelectric Sensor, 120VAC, 1.5VA, 1800W Tungsten/1100VA Ballast
Regular price
$14.40
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

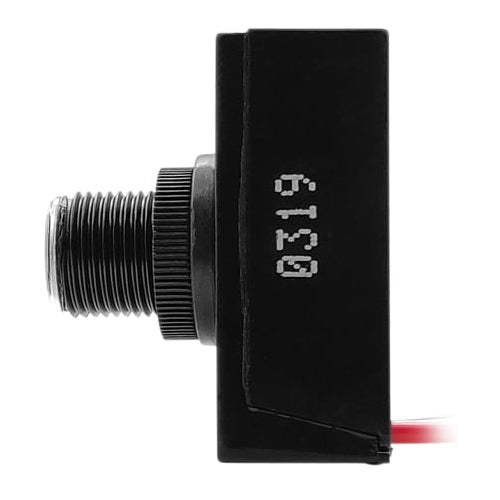

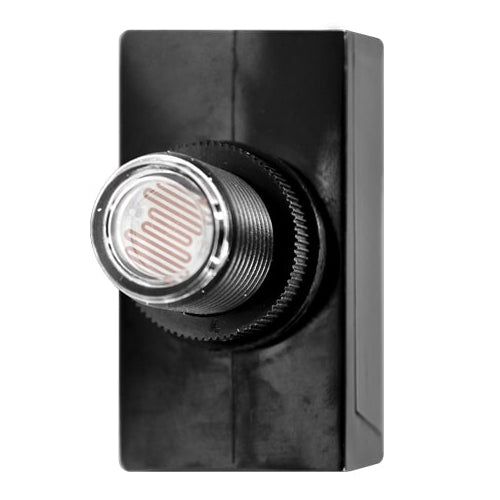

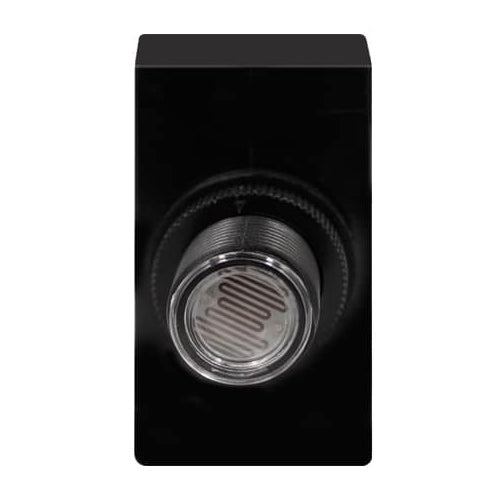

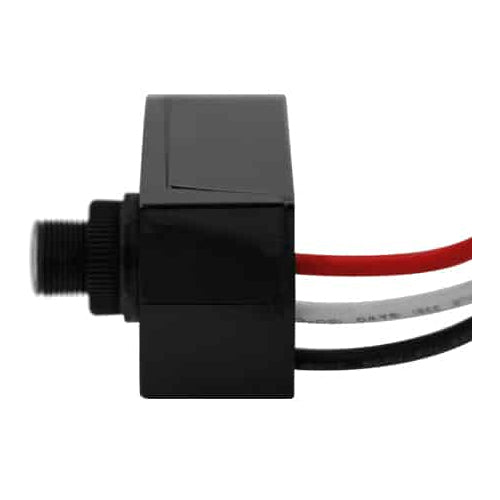

The JL-103AG is a hardwired 120V photocell that switches passage and doorway lighting on at dusk and off at dawn. It mounts through a standard junction-box knockout, so there's no swivel arm to aim. Rated loading is 1800W tungsten or 1100VA ballast at 120VAC, 50/60Hz, drawing 1.5VA. Time delay runs 20 to 120 seconds. Listed by UL LLC to UL773A. UV-stabilised polycarbonate enclosure, rated -40°C to +70°C, six-year warranty.
| Rated Voltage | 120VAC |
| Rated Frequency | 50Hz/60Hz |
| Rated Loading | 1800W Tungsten/1100VA Ballast |
| Power Consumption | 1.5VA |
| Operate Levels | 10~20Lx Turn On/30~60Lx Turn-On |
| Temperature | -40° C ~70° C |
| Leads Length | AWG#16/AWM1332/ min 4" |
| Time Delay | 20-120 Seconds |
| Failure Mode | Fail-On |
| Certifications | cUL |
| Warranty | 6-Year |
