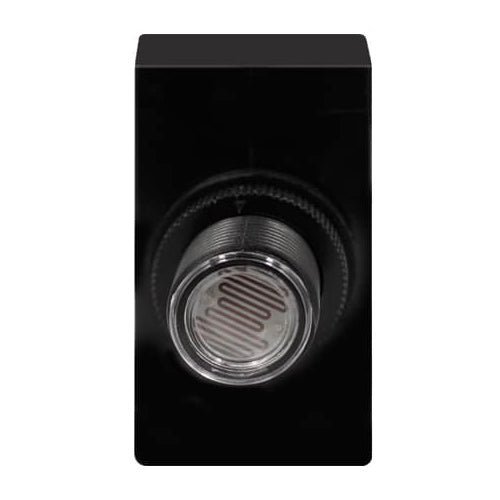

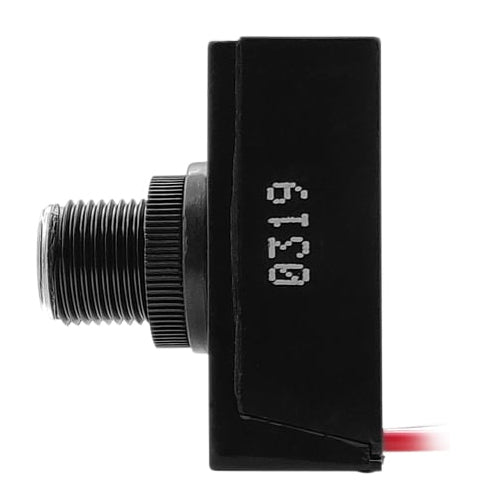

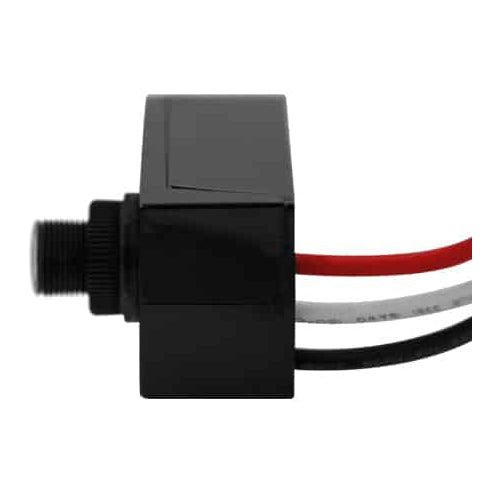

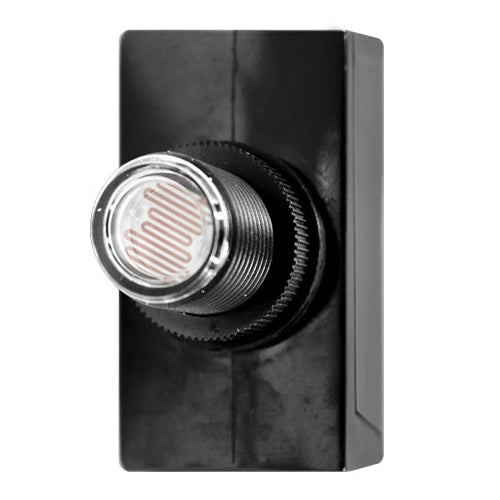

Votatec JL-103EE, Photoelectric Sensor, 347VAC, 1.5VA, 2000W Tungsten/2000VA Ballast
Regular price
$17.10
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The JL-103EE is a 347V photocell that switches exterior lighting dusk to dawn without a step-down transformer. It's a thermal CdS unit rated for Canada's 347/600V commercial services. It carries 2000W tungsten or 2000VA ballast at 347VAC, draws 1.5VA, and turns on at 10-20 Lx, off at 30-60 Lx. Time delay runs 20-120 seconds. Rated -40°C to +70°C. Polycarbonate housing, raintight construction, cULus Listed to UL773A, six year limited warranty.
| Rated Voltage | 347VAC |
| Rated Frequency | 50Hz/60Hz |
| Rated Loading | 2000W Tungsten/2000VA Ballast |
| Power Consumption | 1.5VA |
| Operate Levels | 10~20Lx Turn On/30~60Lx Turn-On |
| Temperature | -40° C ~70° C |
| Leads Length | AWG#16/AWM1332/ min 4" |
| Time Delay | 20-120 Seconds |
| Failure Mode | Fail-On |
| Certifications | cUL |
| Warranty | 6-Year |
